How to Prevent Scale Buildup on Tankless Water Heaters

Water is a basic need that cannot be separated from daily life.

In the context of households, the availability of safe and quality clean water is very important. One important aspect in household water treatment systems is the prevention of scale buildup, especially on appliances such as tankless water heaters. This article will take an in-depth look at household water treatment with a focus on preventing scale buildup on tankless water heaters, as well as various aspects related to the overall household water treatment system.

The household water treatment system is a vital component in ensuring the availability of safe and quality clean water for daily needs. The majority of household water treatment systems utilize municipal water storage or well water, or sometimes a combination of both. The water is then pumped through filters or water softeners to remove substances such as iron, silica, or other contaminants. In some cases, reverse osmosis (RO) systems are also used as part of the treatment process.

One of the main challenges in domestic water treatment is scale buildup, especially on appliances like tankless water heaters. Scale forms when minerals dissolved in water, such as calcium and magnesium, precipitate and form a hard film on the surface of the equipment. This can reduce the efficiency of the equipment, increase energy consumption, and even cause breakdowns if not properly addressed.

In the Indonesian context, the sources of water used for domestic purposes vary widely. Many households use well water, which often faces problems with iron, manganese, and possible bacterial contamination due to leaks from septic tanks. On the other hand, municipal water that comes from rivers is also not free from challenges, such as potential contamination from household waste and cottage industries. Some people choose to use refillable water, but this can also pose problems related to microplastics.

Given the complexity of water issues in Indonesia, the often recommended solution is a whole house water treatment system installed at the point of water entry, either from a well or from a municipal drain. For municipal water, it is usually sufficient to use a carbon filter or water softener, followed by a chlorination process. However, some people dislike the smell of chlorine, which is actually a sign that the water has been properly disinfected.

For those concerned about microplastics, the use of point of use (POU) reverse osmosis (RO) products such as Pentair Merlin Undersink Reverse Osmosis or other brands can be a solution. For homes with higher standards, the use of a whole-house RO system is also possible, although it is quite costly.

Household Water Treatment: Components and Processes

A household water treatment system consists of several key components that work together to produce safe, clean water. Here is a detailed description of those components and the processes involved:

1. Water Source

The source of water for households generally comes from two main sources: well water or municipal water. Each source has its own characteristics and challenges in terms of treatment:

• Well Water: Often contains high levels of iron and manganese, as well as the potential for bacterial contamination due to leaks from nearby septic tanks. To solve this problem, the use of manganese greensand, birm, or direct water softeners can be a solution. Products such as Inversand Manganese Greensand or Clack Birm Iron Removal Media can be used to remove iron and manganese from well water.
• City Water: Despite the treatment process, municipal water can also face issues such as contamination from household or cottage industry waste. Additional treatment may be required to improve the quality of the water.

2. Storage Tanks and Pumps

Once the water from the source enters the system, the next components are:

• Raw Water Storage Tank: Serves to store water from wells or municipal drains.
• Pumps.
• Pump: Used to convey water from the storage tank to the treatment system. Pumps such as Flint and Walling RO Pumps can be used for RO systems.
• Pumps.

3. Filtration System

The filtration stage is an important part of the water treatment process. Some commonly used filter types include:

• Sediment Filters: Removes large particles such as sand, silt, and other impurities.
• Sediment Filters.
• Active Carbon Filters: Removes odors, tastes, and organic compounds. Products such as Calgon Coal-Based Activated Carbon can be used for this purpose.
• Active Carbon Filters.
• Iron and Manganese Filters: Specifically for well water that contains high levels of iron and manganese.
• Iron and Manganese Filters.

4. Water Softening System

For high hardness water, a water softening system is required to remove hardness-causing minerals such as calcium and magnesium. These systems generally use ion exchange resins, such as Purolite Ion Exchange Resin.

5. Reverse Osmosis (RO) System

For more in-depth water treatment, especially to remove contaminants such as microplastics and dissolved minerals, RO systems can be used. These systems use semi-permeable membranes to filter water, such as DuPont Filmtec Brackish Water Membranes.

6. Disinfection System

The final stage in water treatment is disinfection to ensure the water is free of harmful microorganisms. Commonly used methods include:

• Chlorination: The addition of chlorine to kill bacteria and other microorganisms.
• Ultraviolet (UV): The use of UV light to inactivate microorganisms. Products such as Hydropro Ultraviolet can be used for this purpose.

7. Distribution System

After going through the treatment process, water is distributed throughout the house. Important components in the distribution system include:

• Top Storage Tanks: Usually placed on the roof to store the treated water.
• Top Storage Tanks.
• Distribution Pump: Ensures sufficient water pressure to all parts of the house.
• Distribution Pumps.
• Pressure Tanks: Like Wellmate Pressure Storage Tanks, serve to maintain consistent water pressure and prevent the pump from running every time the faucet is opened.
• Pressure Tanks.

Preventing Scale Buildup in Tankless Water Heaters

One of the main challenges in domestic water treatment systems, especially those using tankless water heaters, is the prevention of scale buildup. Scale forms when minerals dissolved in water, mainly calcium and magnesium, precipitate and form a hard layer on the surface of the equipment. Scale buildup can reduce equipment efficiency, increase energy consumption, and even cause breakdowns if not properly addressed.

Here are some strategies that can be implemented to prevent scale buildup on tankless water heaters:

1. Use of a Water Softening System

A water softening system is one of the most effective methods to prevent scale buildup. It works by replacing calcium and magnesium ions in water with sodium ions through an ion exchange process. The use of high-quality ion exchange resins, such as Purolite Ion Exchange Resin, can ensure the effectiveness of the water softening process.

2. Acid Injection

Acid injection into the incoming water stream can help lower the pH of the water and convert bicarbonate to carbon dioxide. This not only increases the solubility of calcium carbonate, but also prevents scale formation. However, the use of this method requires close monitoring of the pH level to avoid corrosion of the piping system.

3. Use of Scale Inhibitors

Scaling inhibitors are chemicals that can be added to water to slow down scale formation. These ingredients work by interfering with the crystallization process of minerals, thus preventing the formation of hard scale. The use of scale inhibitors can be an effective solution, especially for systems with moderate levels of water hardness.

4. Periodic Maintenance

Periodic maintenance on tankless water heaters is essential to prevent scale buildup. This includes regular flushing of the system and cleaning using a weak acid solution to dissolve any scale that has already formed. These procedures should be carried out according to the manufacturer's recommendations to avoid damage to the equipment.

5. Use of Mechanical Filters

The installation of a mechanical filter before water enters the water heater can help reduce the amount of particles and minerals that can contribute to scale formation. A high-quality cartridge filter, such as the Pentair Pentek Cartridge, can be used for this purpose.

6. Temperature Control

Scale formation tends to increase at higher temperatures. Therefore, setting the operating temperature of the water heater at an optimal level can help reduce the rate of scale formation without compromising the comfort of use.

7. Use of Electromagnetic Technology

Some manufacturers offer electromagnetic devices that are claimed to alter the crystal structure of minerals in water, thereby preventing scale formation. Although their effectiveness is still debated, some users report positive results with this method.

Challenges and Solutions in Household Water Treatment

Domestic water treatment in Indonesia faces a variety of unique challenges that require customized solutions. Here are some of the key challenges and applicable solutions:

1. Microbiological Contamination

Challenge: Well water and even municipal water in some areas are susceptible to microbiological contamination, especially coliform bacteria.

Solution: The use of effective disinfection systems is essential. This could include:

• Chlorination: Although some people dislike the smell of chlorine, it is an effective and proven method of killing bacteria.
• Clorination.
• UV systems: The use of ultraviolet light such as Hydropro Ultraviolet can inactivate microorganisms without adding chemicals to the water.
• UV systems.
• Membrane filtration: Systems such as ultrafiltration or nanofiltration can remove most microorganisms.
• Membrane filtration.

2. High Iron and Manganese Content

Challenge: Well water in many parts of Indonesia contains high levels of iron and manganese, which can cause stains on clothing and sanitary equipment, as well as bad taste and odor.

Solution:

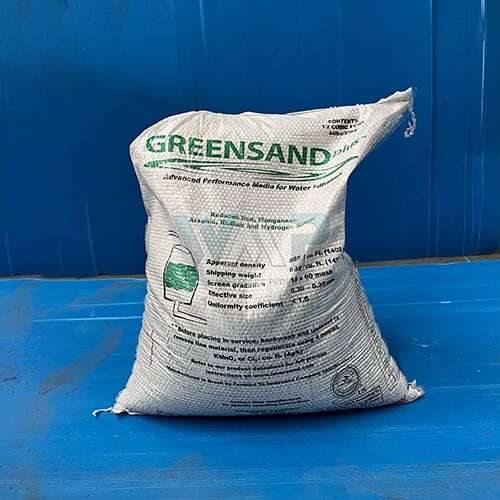

• Use of specialized filtration media such as Inversand Manganese Greensand or Clack Birm Iron Removal Media to remove iron and manganese.
• Aeration to oxidize iron and manganese, followed by filtration.
• Use of chemical oxidizers such as chlorine or potassium permanganate, followed by filtration.

3. High Water hardness

Challenge: Water with high hardness levels can cause scale buildup on equipment and reduce the effectiveness of soaps and detergents.

Solution:

• Use a water softening system with an ion exchange resin, such as Purolite Ion Exchange Resin.
• For small scales, the use of activated carbon filters impregnated with ion exchange media can help reduce hardness.
• Use of membrane technologies such as nanofiltration or reverse osmosis to remove hardness-causing minerals.
.

4. Chemical Contaminants

Challenges: Some areas face the problem of chemical contaminants such as nitrate, arsenic, or other heavy metals, especially in areas with intensive agricultural or industrial activities.

4.

Solution:

• Use of reverse osmosis (RO) systems such as Pentair Merlin Undersink Reverse Osmosis to remove various chemical contaminants.
• Filtration uses specialized media designed to remove specific contaminants.
• Use of ion exchange technology to remove nitrates or specific heavy metals.

5. Aesthetic Issues (Color, Odor, Taste)

Challenge: Water with an unpleasant color, odor, or taste despite being microbiologically safe may reduce consumer acceptance.

Solution:

• Use of activated carbon filters such as Calgon Coal-Based Activated Carbon to remove unpleasant odors and tastes.
• Aeration to remove odors of sulfur or other dissolved gases.
• Use of ozonation technology for color and odor oxidation.

6. Resource Limitations

Challenge: Many households in Indonesia face limitations in terms of financial and technical resources to implement complex water treatment systems.

Solution:

• Development and promotion of simple and affordable water treatment systems that are still effective.
• Education of the public on the importance of water treatment and simple methods that can be implemented at home.
• Collaboration between the government and the public.
• Cooperation between government, NGOs, and the private sector to provide affordable and sustainable water treatment solutions.

Conclusion

Household water treatment, including the prevention of scale buildup on tankless water heaters, is an important aspect of ensuring the availability of safe and quality clean water. By understanding the different components of a water treatment system, the challenges faced, and the solutions available, we can optimize the quality of water in our homes.

It is important to remember that there is no one-size-fits-all approach to water treatment.

It is important to remember that there is no "one-size-fits-all" solution in household water treatment. Each household may require a different approach depending on the quality of the water source, specific needs, and available resources. Therefore, consultation with a water treatment expert and a comprehensive water quality analysis are highly recommended before selecting and implementing a water treatment system.

With the proper implementation of water treatment technologies and practices, we can ensure that every household has access to safe, healthy, and high-quality clean water. This will not only improve quality of life, but also contribute to public health and environmental preservation in the long run.

Questions and Answers

1. Why is prevention of scale buildup important in domestic water treatment systems?

Prevention of scale buildup is essential because scale can reduce equipment efficiency, increase energy consumption, and even cause damage to equipment such as tankless water heaters. Scale forms when minerals dissolved in water, mainly calcium and magnesium, precipitate and form a hard film on the surface of appliances. By preventing scale buildup, we can ensure equipment functions optimally, extend equipment life, and save on energy and maintenance costs in the long run.

2. What is the difference between a whole house system and a point of use (POU) system?

Whole house systems are installed at the point of water entry to the house and treat all water used throughout the house, including for bathing, washing, and other needs. These systems are usually more comprehensive and can deal with a wide range of water quality issues as a whole. On the other hand, point-of-use (POU) systems are installed at a specific point where water will be used, such as under the kitchen sink for drinking water. POU systems are usually smaller, more focused on treating water for specific purposes such as drinking and cooking, and often use technologies such as reverse osmosis or ultrafiltration.

3. How do I determine the right water treatment system for my home?

To determine the right water treatment system, the following steps can be followed: 1. Conduct a water quality test to find out the specific contaminants present in your water. 2. Identify your needs and preferences, such as the volume of water required, available space, and budget. 3. Consult a water treatment expert for recommendations based on the water test results and your needs. 4. Consider factors such as operational costs, required maintenance, and long-term effectiveness of the recommended system. 5. Choose a system that suits your needs and be sure to select a quality product from a trusted brand.

References

1. Byrne, W. "Reverse osmosis: A practical guide for industrial users." (2002). Pp. 63.

2. Pincus, L.I. "Practical Boiler Water Treatment including Air-Conditioning Systems." Pp. 140.

3. Binnie, C., Kimber, M. "Basic Water Treatment (5th Edition)." (2013). Pg. 11.

4. Byrne, W. "Reverse osmosis: A practical guide for industrial users." (2002). Pp. 20.

5. Byrne, W. "Reverse osmosis: A practical guide for industrial users." (2002). Pp. 88.

6. Byrne, W. "Reverse osmosis: A practical guide for industrial users." (2002). Pp. 67.

7. Binnie, C., Kimber, M. "Basic Water Treatment (5th Edition)." (2013). Pg. 229.

8. Hussain, A., Bhattacharya, A. "Advanced Design of Wastewater Treatment Plants: Emerging Research and Opportunities." Pg. 260.

9. Spellman, F.R. "Handbook of water and wastewater treatment plant operations." Pg. 630.
