Components and Solutions for Household Water Treatment

Clean water is a basic need that is very important for every household.

However, the quality of available water does not always meet the desired health and comfort standards. Therefore, household water treatment systems are becoming an increasingly popular solution to ensure the availability of clean and safe water at home. In this article, we will take an in-depth look at the components of a household water treatment system, with a special focus on the sediment filter as one of the key elements in the water purification process.

Water purification is an important part of the water treatment process.

Modern domestic water treatment systems are designed to address a variety of water quality challenges, whether sourced from well water or PDAM water. Each water source has different characteristics and potential contaminants, requiring specific treatment approaches. For example, well water often contains high levels of iron and manganese, and is potentially contaminated with bacteria from leaking septic tanks. On the other hand, PDAM water that comes from rivers may be polluted by household and industrial waste, and contain residual chlorine that can affect the taste and odor of the water.

In the face of these challenges, a comprehensive domestic water treatment system usually consists of several treatment stages. Starting from raw water storage, pumping, filtration, water softening, to disinfection. Each stage plays an important role in ensuring that the quality of water produced meets the health and comfort standards of the users.

Main Components of Household Water Treatment System

1. Raw Water Storage Tank

A raw water storage tank serves as a reservoir for water from the source, be it a well or PDAM. This tank ensures stable water availability for the next treatment process. The choice of material and size of the tank must be adjusted to the needs and conditions of the house.

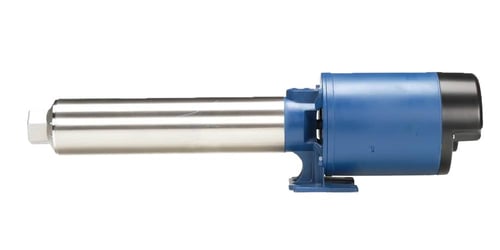

2. Water Pump

Water pumps play an important role in transporting water from storage tanks to various stages of treatment. Proper pump selection, such as the Flint and Walling RO pump, can improve overall system efficiency.

3. Sediment Filter

The sediment filter is the first line of defense in a water treatment system. Its main function is to filter out coarse particles such as sand, silt, and other impurities. This filter is critical to protecting other system components from damage and extending the overall life of the system.

4. Activated Carbon Filter

Active carbon filters are effective in removing odors, bad tastes, and organic compounds dissolved in water. Products such as coal-based activated carbon from Calgon are often used for this purpose.

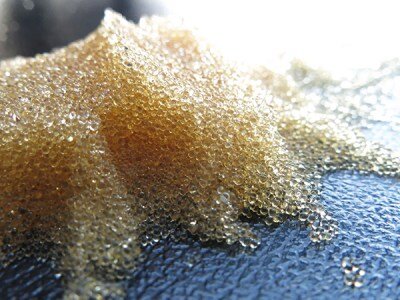

5. Water Softener System

Water softening systems are used to reduce water hardness by removing minerals such as calcium and magnesium. This is especially important for areas with hard groundwater, which can cause scaling in appliances and pipes.

6. Reverse Osmosis (RO) System

For more in-depth water treatment, especially for drinking water, RO systems are highly effective in removing microscopic contaminants, including bacteria and viruses. Pentair Merlin's under-sink RO system is an example of a solution suitable for households.

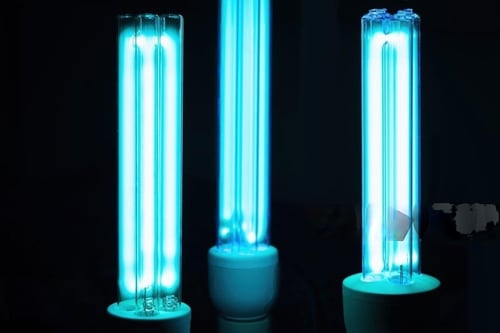

7. UV Disinfection System

Ultraviolet (UV) is used to kill microorganisms that may have escaped the previous filtration stages. This system is highly effective in ensuring water is free from harmful bacteria and viruses.

8. Pressure Tank

Pressure tanks, such as the Wellmate pressurized storage tank, help maintain consistent water pressure throughout the home without the need to turn on the pump every time the faucet is opened.

Focus on Sediment Filters: A Key Component in Water Treatment

Sediment filters play a very important role in household water treatment systems. As the initial stage in the filtration process, these filters are responsible for removing coarse particles that can interfere with the performance of other system components. Let us discuss in more detail about sediment filters and their significance:

1. Main Functions of Sediment Filters

Sediment filters are designed to capture solid particles such as sand, clay, rust flakes, and other impurities that are larger than 5 microns in size. By removing these particles, sediment filters protect other water treatment system components from damage and clogging.

2. Types of Sediment Filters

There are several types of sediment filters commonly used in domestic water treatment systems:

• Cartridge Filter: Usually made of polypropylene or other synthetic materials, these filters are available in a variety of pore sizes to filter particles of varying sizes.
• Cartridge Filters.
• Multimedia Filters: Uses multiple layers of filtration media such as sand, anthracite, and garnet to filter out different particle sizes.
• Multimedia Filters.
• Backwash Filter: A self-cleaning filter system that reverses the flow of water to clean the filtration media.
Backwash Filter: A self-cleaning filter system that reverses the flow of water to clean the filtration media.

3. Proper Sediment Filter Selection

The selection of the right sediment filter depends on several factors, including:

• Raw water quality: Water with high turbidity levels may require a filter with a greater particle capture capacity.
• Flow rate.
• Flow rate: The filter should be able to handle the required water flow rate without significantly reducing water pressure.
• Filter replacement frequency.
• Replacement frequency: Consider ease of replacement and long-term maintenance costs.
• Frequency of replacement.

4. Sediment Filter Maintenance and Replacement

Routine maintenance of the sediment filter is essential to ensure optimal performance of the water treatment system. This includes:

• Periodic inspection for signs of clogging or damage.
• Cleaning or replacement of the filter as per manufacturer's recommendations or when a significant drop in water pressure occurs.
• For backwash filters, perform a regular backwashing process to clean the filtration media.

5. Innovations in Sediment Filter Technology

Technological developments have resulted in more efficient and durable sediment filters. Some recent innovations include:

• Filters with nanofiber technology capable of capturing smaller particles without reducing flow rates.
• Smart filter system that can provide notifications when the filter needs to be replaced or cleaned.
• Sediment filter integrated with ion exchange technology to solve water hardness problem at once.

Challenges and Solutions in Household Water Treatment

While household water treatment systems offer many benefits, there are several challenges that need to be addressed to ensure long-term effectiveness and efficiency:

1. Iron and Manganese Contamination

Well water often contains high levels of iron and manganese, which can cause stains on clothing and sanitary equipment, as well as impart a metallic taste to the water. To solve this problem, the use of specialized filters such as Clack Birm iron removal media or manganese greensand can be very effective.

2. Microbiological Contamination

The presence of bacteria and viruses in water is a serious threat to health. A combination of filtration, RO systems, and UV disinfection can provide layered protection against microbiological contaminants.

3. Chlorine Residual

While chlorine is important for disinfection, its residue can affect the taste and odor of water. Activated carbon filters are effective in removing residual chlorine, improving the organoleptic quality of water.

4. Microplastics

Concerns over microplastics in drinking water are increasing. RO systems, especially those using DuPont FilmTec RO membranes, can be an effective solution for removing microplastic particles.

5. Energy Efficiency

Complex water treatment systems can consume significant energy. The use of energy-efficient pumps and system optimization can help reduce electricity consumption.

Choosing the Right Water Treatment System for Your Home

Choosing the right water treatment system for your home requires careful consideration of several factors:

1. Water Quality Analysis

The first step is to conduct a water quality analysis to determine the types of contaminants that need to be addressed. This will help in determining the required system components.

2. Water Requirements

Consider the number of family members and water usage patterns to determine the required system capacity.

3. Available Space

Evaluate the space available for system installation. Some homes may require a more compact solution.

4. Budget

Consider initial costs and long-term maintenance costs. A more expensive system may offer better efficiency and durability in the long run.

5. User Preferences

Some users may prefer a system that is easy to operate and requires little maintenance, while others may be more interested in a system that can be customized in detail.

Future Trends in Household Water Treatment

The water treatment industry is constantly evolving with new innovations that promise increased efficiency and effectiveness:

1. Smart Water Treatment Systems

The integration of IoT (Internet of Things) technology in water treatment systems enables remote monitoring and control, as well as real-time data analysis for performance optimization.

2. Advanced Membrane Technology

The development of more efficient and durable filtration membranes, such as Xelect ultra-low and extra-low pressure RO membranes, will improve RO system performance.

3. Environmentally Friendly Solutions

Focus on developing water treatment systems that are more energy efficient and produce less waste will be an increasingly important trend.

4. System Personalization

Water treatment systems that can be customized to the specific needs of each household, including specific flavor and mineral preferences, will become more common.

Conclusion

Household water treatment systems have become an important solution in ensuring the availability of clean and safe water at home. With a range of complementary components, from sediment filters to RO systems and UV disinfection, these systems are capable of addressing the various water quality challenges faced by modern households.

The sediment filter, as the initial component in the treatment process, plays a crucial role in protecting the overall system and ensuring the efficiency of the subsequent treatment process. Proper selection and maintenance of the sediment filter and other components are critical to ensure long-term optimal performance of the system.

According to technological developments and the development of water quality, the sediment filter is a key component of the treatment process.

Along with the development of technology and the increasing awareness of the importance of water quality, we can expect further innovations in the domestic water treatment industry. Smarter, efficient, and environmentally friendly systems will be the norm in the future, providing better solutions for household clean water needs.

At the same time, we can expect further innovations in the household water treatment industry.

In choosing a water treatment system for your home, it is important to consider specific needs, source water quality, and other factors such as space and budget. A consultation with a professional in the water treatment field can help you make the right decision to ensure your family has access to clean, safe water every day.

With the right investment in a water treatment system for your home, it's important to consider your specific needs, source water quality, and other factors like space and budget.

With the right investment in a household water treatment system, you not only improve your family's quality of life but also contribute to a more sustainable use of water resources. This is an important step towards a future where clean and safe water is available to all, starting from our own homes.

Questions and Answers About Household Water Treatment Systems

1. Are household water treatment systems safe for long-term use?

Answer: Yes, a properly designed and maintained domestic water treatment system is very safe for long-term use. These systems have gone through various tests and certifications to ensure their safety. However, it is important to perform regular maintenance and component replacement as per manufacturer's recommendations to ensure optimum performance and safety of the system.

2. How do I know when the sediment filter needs to be replaced?

Answer: There are several indicators that show that the sediment filter needs to be replaced:

• Significant drop in water pressure
• Water coming out becomes cloudy or colored
• Filter looks very dirty or clogged
• Has passed the manufacturer's recommended replacement time interval

3. Do RO systems remove essential minerals from the water?

Answer: Reverse Osmosis (RO) systems do remove most minerals from water, including some beneficial minerals. However, many modern RO systems are equipped with a remineralization stage that adds essential minerals back into the treated water. In addition, most of our body's mineral needs are met through food, not drinking water. If you are concerned about mineral intake, consult a nutritionist or consider an RO system with a remineralization feature.

References

1. Byrne, W. "Reverse osmosis: A practical guide for industrial users." (2002)

"Reverse osmosis (RO) has become a popular water treatment technology, requiring the separation of a dissolved solute from its solvent, usually water. The most common application of RO is the purification of water, involving the removal of undesirable contaminants." (p. 8)

2. Spellman, F.R. "Handbook of water and wastewater treatment plant operations." (2003)

"Flocculation, Sedimentation, Filtration, Slow Sand Filters, Sand filter media, Water treatment processes, Turbidity, Filtration rate, Filter operation, Operator attention, Water systems" (p. 642)

3. Binnie, C. and Kimber, M. "Basic Water Treatment (5th Edition)." (2013)

"Environmental considerations also impact on treatment processes used, with the problems and costs associated with the acceptable treatment and disposal of wastes arising from treatment becoming ever more significant." (p. 11)

4. Hendricks, D.W. "Fundamentals of water treatment unit processes: physical, chemical, and biological." (2006)

"Source waters, typical contaminants treated, and the purpose of the product water. The variety of treatment situations is discussed, including treatment of high-quality surface waters for drinking water, treated municipal wastewater being further treated for agricultural use, industrial cooling water, injection to groundwater, and a contaminated groundwater being renovated by treatment and re-injected into an aquifer." (p. 79)
