Design and Selection of the Best Reverse Osmosis System for Your Home

Clean water is a basic need that is very important for every household.

One of the most effective and versatile water treatment technologies is the reverse osmosis (RO) system. RO systems are capable of removing various types of contaminants, ranging from microscopic particles to dissolved ions, making them an ideal choice for producing high-quality drinking water. In this article, we will take an in-depth look at the design and selection of reverse osmosis systems for household use.

Before we dive into RO systems, it is important to understand that every household has different water needs. Some homes may rely on well water that contains high levels of iron and manganese, while others may use treated PDAM water that still carries the risk of microbial contamination. Others use a combination of both. An understanding of the water source and the water quality challenges faced will go a long way in designing an appropriate water treatment system.

A household water treatment system usually consists of several stages. It starts with raw water storage (either from a well or PDAM), then goes through a series of filtration and softening processes to remove contaminants such as iron, silica, and hardness. In some cases, an RO system is integrated as the final stage to produce high-quality drinking water.

For those using well water, the main challenges are often iron, manganese, and potential bacterial contamination from septic tank leaks. On the other hand, PDAM water users may face contamination issues from household industrial waste or treatment residuals such as chlorine. Some people choose to use refill water, but this is also not free from the risk of microplastic contamination.

The solution we recommend is a whole house water treatment system installed at the point of water entry, either from a well or PDAM. For PDAM water, it is often sufficient to use a carbon filter and water softening, followed by chlorination. However, some people dislike the smell of chlorine, even though it is a sign that the water has been properly disinfected.

If there are concerns about microplastics, the use of point-of-use (POU) RO products such as Pentair Merlin RO or other brands can be a solution. For luxury homes, the use of a whole-house RO system is also an option, although it is more expensive.

Design and Components of a Household Reverse Osmosis System

A household reverse osmosis (RO) system consists of several key components that work together to produce high-quality drinking water. Let's discuss these components in detail:

1. Pretreatment

The pretreatment stage is critical to protect the RO membrane and extend the life of the system. The components of pretreatment include:

• Sediment Filter: Removes large particles such as sand, silt, and rust. A Pentair Pentek cartridge filter is a good choice for this stage.
• Carbon Filter: Removes unwanted chlorine, odors, and tastes. Calgon's coal-based activated carbon is very effective for this purpose.
• Water Softener: If your water has high hardness, water softening is necessary to prevent scaling on the RO membrane. The Purolite ion exchange machine can be used in a water softening system.

2. High Pressure Pump

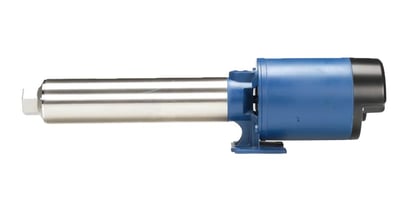

This pump is needed to provide enough pressure for the water to pass through the RO membrane. The Flint and Walling RO pump is a good choice due to its energy efficiency.

3. Reverse Osmosis Membrane

This is the heart of the RO system. This semi-permeable membrane removes up to 99% of contaminants from water. The DuPont FilmTec brackish water membrane is one of the best in the industry.

4. Storage Tank

Storage tanks are necessary because the RO process is relatively slow. Wellmate's pressurized storage tanks are a good choice for maintaining consistent water pressure.

5. Post-treatment

This final stage may include:

• Carbon Polish:To improve the taste of water.
• Remineralization:Adding beneficial minerals back into RO water.
• UV Disinfection: To kill microorganisms that may escape. Hydropro's UV system is very effective for this purpose.
• UV Disinfection: To kill any microorganisms that may have escaped.

6. Automatic Shut-off Valve

This valve stops water production when the storage tank is full. The Aquamatic automatic valve is a reliable choice for this function.

7. Pressure Vessels

A high-pressure container that holds RO membranes. Codeline's Pressure vessels Codeline 40E and 40S series are a high-quality choice for household RO systems.

The design of an effective RO system should consider raw water quality, daily water requirements, and available space. A well-designed system will integrate all of these components efficiently to produce consistently high-quality drinking water.

Choosing the Right Reverse Osmosis System

Choosing the right reverse osmosis (RO) system for your home requires consideration of several important factors. Here is a step-by-step guide to help you make the right decision:

1. Raw Water Quality Analysis

The first step is to know the quality of your raw water. Conduct a water test to determine the content of specific contaminants such as TDS (Total Dissolved Solids), hardness, iron, manganese, and pH. The results of this test will determine the type of pretreatment required before the water enters the RO system.

2. Determine Daily Water Needs

Calculate your family's daily drinking water needs. This will help determine the required RO system capacity. As a general guide, each person needs about 2-3 liters of drinking water per day.

3. Choose Between Point-of-Use (POU) or Whole House System

POU systems, such as the Pentair Merlin undersink RO, are installed under the sink and provide drinking water at only one point. Whole house RO systems treat the entire water entering the home, but are more expensive and require more space.

4. Consider System Efficiency

Pay attention to the RO system's recovery ratio, which indicates how much water it produces compared to the water it discharges. High-efficiency systems such as the Xelect ULP and XLP RO membranes can save water and operational costs.

5. Evaluation of Pretreatment Needs

Based on the results of the water analysis, determine the pretreatment required. This could include:

• Water softening using Purolite ion exchange resin to address high hardness.
• Iron and manganese removal with manganese greensand Inversand or Birm Clack media.
• Carbon filtration for chlorine and odor removal using Calgon activated carbon.

6. Choose Quality Components

Invest in high-quality components to ensure the performance and durability of your RO system:

• RO membrane: DuPont FilmTec or Toray for brackish water.
• Pump: Flint and Walling or Procon for energy efficiency.
• Pumps.
• Pressure vessels: Codeline 40E and 40S series for reliability.
• Pressure vessels.
• Automatic valves: Aquamatic for precise control.
• Automatic valves.

7. Consider Post-treatment

RO water often requires post-treatment to improve its quality:

• Remineralization of water with PH adjustment media Calcite and Corosex Clack.
• UV disinfection using Hydropro UV system.

8. Evaluate Cost and Maintenance

Consider not only initial costs, but also long-term operational and maintenance costs. A more expensive system may be more cost-effective in the long run if it has high efficiency and durable components.

9. Check Certification and Warranty

Make sure the RO system you choose has relevant certifications (e.g. NSF) and an adequate warranty. This provides quality assurance and protection of your investment.

10. Consult an Expert

If in doubt, do not hesitate to consult a water treatment expert. They can help you design a system that best suits the specific needs of your home.

10.

By considering the above factors, you can choose an RO system that not only produces high-quality drinking water, but is also efficient, durable, and within your budget.

Conclusion

Reverse osmosis (RO) systems have become the go-to solution for household water treatment, offering superior capabilities in removing various contaminants and producing high-quality drinking water. Through our in-depth discussion of RO system design and selection, we have seen how important it is to understand the specific needs of each household and the characteristics of the available raw water.

The key to designing an RO system is to understand the specific needs of each household.

The key to designing an effective RO system is proper integration between pretreatment, the main RO components, and post-treatment. Appropriate pretreatment, such as the use of sediment filters, activated carbon, and water softening, is essential to protect the RO membranes and extend the life of the system. Selection of high-quality RO membranes, such as products from DuPont FilmTec or Toray, guarantees optimal contaminant separation efficiency.

In the selection process, it is important to consider not only the quality of water produced, but also system efficiency, operational costs, and long-term maintenance needs. A well-designed system, using quality components such as Flint and Walling pumps and Codeline pressure vessels, will provide years of reliable and consistent performance.

It is important to keep in mind that any solution to the problem of contaminant separation will have to be customized.

It's important to remember that there is no "one-size-fits-all" solution in household water treatment. Each home has unique challenges, be it the high iron content of well water, the risk of microbial contamination, or concerns about microplastics. Therefore, a thorough analysis of the raw water quality and consultation with a water treatment expert is highly recommended before making a final decision.

Investing in the right RO system is not just about getting safe and delicious drinking water. It is also an important step in protecting your family's health, reducing reliance on bottled water, and contributing to more sustainable water use. With a good understanding of RO technology and careful consideration of your specific needs, you can make the right choice for a household water treatment system that will provide long-term benefits.

Questions and Answers About Household Reverse Osmosis Systems

1. Do RO systems remove essential minerals from the water?

Yes, RO systems do remove most minerals from water, including some beneficial minerals. However, this is not a big deal since most of our mineral intake comes from food, not water. If you are concerned, you can add a remineralization stage after RO using media such as Calcite and Corosex from Clack to add important minerals back into the water.

2. How often do I need to replace the RO membranes?

The lifespan of high-quality RO membranes such as DuPont FilmTec typically ranges from 2-5 years, depending on raw water quality and usage. However, prefilters such as sediment and activated carbon need to be replaced more frequently, usually every 6-12 months. Regular water quality monitoring can help you determine the right time for component replacement.

3. How to solve the problem of low water pressure after RO system installation?

Low water pressure after RO is a common problem. Some solutions include: - Using a booster pump such as Flint and Walling RO pumps. - Installing pressurized storage tanks such as Wellmate pressure storage tanks. - Ensuring all components, including valves and pipes, are the appropriate size for the desired flow.

References

1. Byrne, W. "Reverse Osmosis: A Practical Guide for Industrial Users." (2nd Edition). Tall Oaks Publishing Inc.

"Most water treatment systems are not designed to handle more than a 6- to 10-fold loss of pressure across the cartridge filters. This limitation on how small the membrane pores can be is due to the risk of the flat sheet membrane getting clogged or damaged." (p. 171)

2. American Water Works Association. "Water Quality and Treatment: A Handbook of Community Water Supplies." (6th Edition). McGraw-Hill.

"RO has become an alternative to distillation for producing USP Purified Water, as the costs of distillation have escalated. RO systems are more membrane-based, with the use of membranes helping to retain the microbiological state required by USP standards." (p. 189)

3. Crittenden, J.C., et al. "Water Treatment: Principles and Design." (3rd Edition). John Wiley & Sons.

"Iron and manganese can cause fouling if present in high concentrations, and need to be removed. Aluminum is reactive and can form insoluble scales that foul the membrane. Treatment plant designs need to consider aluminum levels." (p. 20)
