Recommended Water Refilling Station Layout for Your Business

Refillable drinking water has become an integral part of the daily lives of Indonesians.

Source: https://innovativewatersolutionsinc.com/

With the increasing awareness of the importance of safe and quality drinking water, the refill water depot business continues to grow rapidly across the country. However, despite its popularity, the industry faces unique challenges in terms of maintaining water quality, optimizing production processes, and meeting strict safety standards. This article will take an in-depth look at how to optimize the layout of water refilling stations to improve operational efficiency and product quality.

The refill water business in Indonesia has diverse characteristics. Some depots claim to use mountain water sources, while others utilize well water or PDAM water. Regardless of the source, all refill water depots have a great responsibility to provide safe and healthy drinking water for consumers. A proper water treatment process is key in ensuring the quality of the final product.

One important aspect of running a refill water business is the optimal design and layout of the filling station. An efficient layout not only increases productivity, but also helps maintain hygiene and water quality. In this article, we will explore the various factors to consider in designing an ideal water refill station, from equipment selection to ergonomic workflow.

As an owner or manager of a water refill depot, you need to be aware of the various factors that need to be considered in designing an ideal water refill station.

As the owner or manager of a refill water depot, you have an obligation to ensure that the water you produce is safe for consumption. This means you must understand and implement proper water treatment processes, including filtration, disinfection, and purification. We will discuss the latest technologies that can be used to improve water quality, such as reverse osmosis (RO) systems, ultrafiltration, and UV sterilization.

In addition, we will also look at the importance of regular maintenance and hygiene in refill water depot operations. Good sanitation practices not only maintain water quality, but also build consumer confidence and meet regulatory requirements. We will provide practical tips on how to implement effective cleaning procedures and maintain hygiene throughout the production area.

In an era where consumer awareness of drinking water quality is heightened, refill water businesses must constantly innovate and improve their operational standards. This article will help you understand the complexities of the refill water industry and provide valuable insights on how to optimize your business for long-term success.

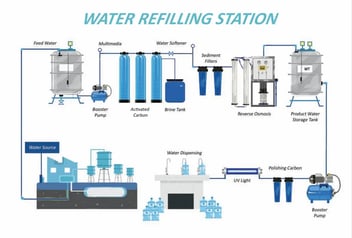

Understanding the Water Treatment Process for Refill Depots

The water treatment process for refill depots is a series of critical stages that determine the final quality of the product. The first and foremost step is to ensure the source water used is free from contamination. Whether it comes from a mountain spring, deep well, or municipal water supply, each source has its own unique challenges.

Once the water source is confirmed, the next step is the initial filtration process. This typically involves using a sediment filter to remove coarse particles. An effective sediment filter can reduce the turbidity of the water and protect subsequent treatment system components from damage due to abrasive particles.

The next step is disinfection.

The next stage is disinfection, which is a crucial step in removing pathogenic microorganisms. Commonly used disinfection methods include chlorination, ozonation, and UV sterilization. Each method has its own advantages and disadvantages. For example, ozonation is effective in killing microorganisms and eliminating odors, but it does not have residual effects like chlorine. On the other hand, UV sterilization is highly effective in inactivating bacteria and viruses without changing the taste or smell of the water, but it is not effective against chemical contaminants.

After disinfection, the water is disinfected.

After disinfection, water may need to go through a further purification process to remove dissolved contaminants. One technology that is often used is reverse osmosis (RO). RO systems are capable of removing a variety of contaminants, including dissolved salts, heavy metals, and organic compounds. is an example of a product that can be used to improve water quality without removing all dissolved minerals.

After going through a series of treatment processes, purified water is usually stored in storage tanks before being packaged or distributed to consumers. It is important to ensure that these storage tanks are made of food-grade materials and are routinely kept clean to prevent re-contamination.

In the context of a bottled water depot, the purified water is usually stored in a storage tank.

In the context of refill water depots, the selection and setup of water treatment equipment should be tailored to the desired production capacity and source water quality. For example, for depots with high production capacity, larger or parallel filtration and RO systems may be required. Codeline's Pressure vessels Codeline series 40E and 40S can be the right choice to house RO membranes in a commercial-scale system.

In addition, monitoring of water quality is important to ensure the quality of the water.

In addition, consistent monitoring of water quality is essential. The use of analyzers such as pH meters and conductivity analyzers from Create can help depot operators to monitor key water quality parameters in real-time.

Last, but not least, is the sanitation and hygiene aspect. The entire equipment and production area must be kept strictly clean. This includes regular cleaning and disinfection of storage tanks, pipes, and filling equipment. The use of food-safe cleaning chemicals and proper cleaning procedures are essential to prevent cross-contamination and biofilm growth.

Optimization of Water Refilling Station Layout

An optimized water refilling station layout is the key to efficient and hygienic operations. A good design not only increases productivity but also helps maintain water quality and worker safety. Here are some important aspects to consider in optimizing the layout of a water refilling station:

1. Linear Workflow: The layout should be designed to support a linear and efficient workflow. This means placing equipment and work stations in a logical sequence that follows the water treatment process from start to finish. For example, the raw water receiving area should be near the initial filtration system, followed by the RO or UF system, then heading to the storage area and finally to the filling station.
2. Zone Separation: It is important to separate "dirty" areas (such as raw water reception and effluent discharge areas) from "clean" areas (such as filling and storage areas of treated water). This helps prevent cross-contamination and maintain the hygiene of the final product.
3. Equipment Accessibility: All major equipment should be easily accessible for routine maintenance and repairs. This includes providing sufficient space around pumps, filters, and RO systems. The Flint and Walling RO pump, for example, should be placed in an easily accessible area for periodic inspection and servicing.
4. Ventilation and Lighting: Ensure that the production area is well ventilated to prevent excess moisture that can promote microbial growth. Adequate lighting is also important to facilitate visual inspections and maintain cleanliness.
5. Flooring and Drainage: Floors should be made of materials that are waterproof and easy to clean. A good drainage system is essential to prevent stagnant water that can be a source of contamination.
6. Chemical Storage Areas: If using chemicals for processing or cleaning, provide a separate storage area that is secure and locked. This should be away from treatment and water replenishment areas.
7. Sanitization Stations: Place hand washing and sanitizing stations in strategic locations, especially at the entrance of the production area and close to the filling station.
8. Space for Expansion: If possible, leave room for future expansion. This could be an area to add production capacity or integrate new technology.
9. Energy Efficiency: Consider equipment placement to optimize energy use. For example, placing pumps close to storage tanks can reduce energy requirements for pumping.
10. Quality Testing Area: Provide a dedicated space for water quality testing. This can be a mini-laboratory equipped with basic testing equipment such as pH meter and conductivity analyzer.
11. Storage and Distribution System: Design an efficient storage and distribution system. This may include the use of Wellmate pressurized storage tanks to ensure consistent water flow to filling stations.
12. Technology Integration: Consider the integration of automated control systems to monitor and regulate the water treatment process. This can improve operational efficiency and product quality consistency.
13. Security: Implement security measures to protect equipment and products. This could include CCTV camera systems and access control to production areas.
14. Ergonomics: Design workstations with ergonomics in mind for worker comfort and safety. This includes proper workbench height and easy-to-operate equipment.
15. Waste Management: Design an efficient waste management system, especially for the discharge water from the RO process. Consider the option of recycling or reusing the effluent water where possible.

Optimizing station layout.

Optimizing the layout of a water refilling station is not just about space efficiency, but also about creating an environment that supports the production of consistently high-quality drinking water. By considering the above factors, refill water depots can increase productivity, maintain product quality, and meet stringent safety and hygiene standards.

It is important to remember that every water refill depot is different.

It is important to remember that each refill water depot may have unique needs and challenges based on location, production capacity, and local regulations. Therefore, the layout design should be customized to the specific needs of each business. Consultation with an industrial design expert or water treatment engineer can help in developing the optimal layout for your operation.

Key Technologies and Equipment in the Refillable Water Business

In the refillable water industry, choosing the right technology and equipment is critical to guaranteeing product quality and operational efficiency. Here are some key components to consider:

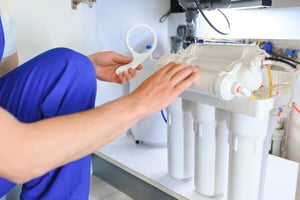

1. Initial Filtration System: This is the first line of defense in the water treatment process. Multi-stage sediment filters, such as multistage cartridge filters, are essential for removing both coarse and fine particles. The NSF certified Pentair Pentek cartridge filter is a good choice for this application.

2. Reverse Osmosis (RO) System: RO is the core technology in many modern refill water depots. These systems are capable of removing dissolved contaminants, including salts, heavy metals, and organic compounds. Dupont Filmtec RO membranes are known for their high quality and efficiency.

3. Ultrafiltration (UF): As an alternative or complement to RO, UF systems are effective in removing bacteria and viruses while retaining essential minerals. Asahi's ultrafiltration membrane is an example of a product that can be used to improve water quality.

4. Disinfection Systems: UV sterilization and ozonation are commonly used disinfection methods. Hydropro's UV system can be an effective option for inactivation of microorganisms without adding chemicals to the water.

Hydropro's UV system is an example of a product that can be used to improve water quality.

5. Pump and Pressurization System: High-quality pumps are required to move water through the various stages of treatment. pressurized storage tanks can help maintain consistent water pressure in the distribution system.

7. Control and Monitoring Systems: Analytical equipment such as pH meters and conductivity analyzers from Create are important for real-time monitoring of water quality.

PH meters and conductivity analyzers from Create are important for real-time monitoring of water quality.

8. Chemical Injection System: For pH adjustment or remineralization, chemical dosing pumps such as Hydropro dosing pumps can be used to add chemicals or minerals with precision.

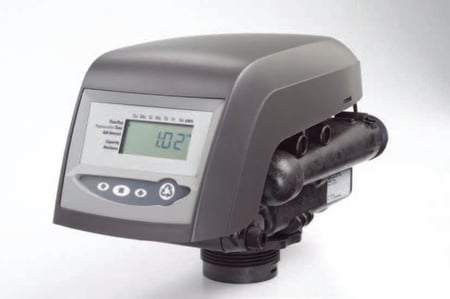

9. Automatic Backwash System: For media filters such as activated carbon or sand, an automatic backwash system such as the Pentair Autotrol automatic filter valve can help maintain filter efficiency.

10. Filtration Media: Various filtration media such as Calgon coal-based activated carbon or CEI anthracite filter media can be used to remove specific contaminants.

The selection and integration of the right technology and equipment should be tailored to the specific needs of each refill water depot, considering factors such as source water quality, desired production capacity and local regulatory requirements. Investments in high-quality equipment and the latest technology can improve operational efficiency, ensure product quality consistency, and ultimately provide a competitive edge in the increasingly competitive refill water industry.

Conclusion

Optimization of water refill station layout is a crucial aspect of running a successful and sustainable refill water business. Through the in-depth discussion in this article, we have seen how important it is to design a system that is not only operationally efficient, but also able to guarantee the quality and safety of drinking water products.

Some of the key points to keep in mind in optimizing a refill water depot include:

1. Choosing the right water source and implementing a comprehensive water treatment process, including filtration, disinfection, and purification.
2. Using the latest technologies such as reverse osmosis, ultrafiltration, and UV sterilization to produce high-quality drinking water.
3. Layout design.
4. Layout design that supports linear workflow, separates "dirty" and "clean" zones, and ensures accessibility of equipment for routine maintenance.
5. Implementation of a strict water quality monitoring system and effective sanitization procedures to maintain consistency in product quality.
6. Invest in high-quality equipment and consider ergonomics and worker safety factors in workstation design.

It is important to remember that each refill water depot has unique characteristics that require a customized approach. Factors such as production capacity, source water quality, local regulations, and budget should be taken into consideration in designing an optimal system.

In an era where consumer awareness of drinking water quality is increasing, refill water businesses must continue to innovate and improve their operational standards. By adopting best practices in layout design and water treatment, refill water depots can not only meet, but even exceed the expectations of consumers and regulators.

At the end of the day, the long-term success of a refill water depot is its own reward.

At the end of the day, long-term success in the refill water industry relies on a commitment to continuously improve the quality, efficiency, and sustainability of operations. By combining in-depth knowledge of water treatment processes, the latest technology, and good management practices, refill water depots can position themselves as trusted and responsible drinking water providers in the community.

Q&A About Refill Water Depot Optimization

1. What are the main differences between RO (Reverse Osmosis) and UF (Ultrafiltration) systems in drinking water treatment?

RO and UF systems have significant differences in how they work and the end result:

RO uses semi-permeable membranes with very small pores (about 0.0001 microns) that are capable of removing almost all contaminants, including dissolved salts, heavy metals, and microorganisms. RO is very effective in producing water with a high degree of purity, but it also removes natural minerals that may be beneficial.

UF, on the other hand, uses membranes with larger pores (around 0.01 microns). UF is effective in removing bacteria, viruses, and suspended particles, but cannot remove dissolved salts or minerals. UF retains the natural minerals in water, which is considered by some to be an advantage in terms of taste and nutritional value.

2. How to ensure optimal hygiene and sanitation in refill water depot operations?

Maintaining optimal hygiene and sanitation in refill water depots involves several important steps:

• Implementation of regular cleaning and disinfection procedures for all equipment, including storage tanks, pipes, and filling stations.
• Use of cleaning chemicals that are food-safe and compliant with industry standards.
• Staff training on good hygiene practices, including proper handwashing and use of personal protective equipment.
• Water quality monitoring.
• Regular monitoring of water quality through microbiological and chemical testing.
• Maintenance of a good ventilation system to prevent excess moisture and mold growth.
• Application of food safety management systems such as HACCP (Hazard Analysis and Critical Control Points).
• Application of food safety management systems such as HACCP (Hazard Analysis and Critical Control Points).

3. Is it important to add minerals back into the water after the RO process, and how is it done?

The addition of minerals back into the water after the RO process (remineralization) is considered important by many experts for several reasons:

• Improves the taste of the water, as pure RO water tends to taste "bland."
• Balances the pH of the water, as RO water tends to be slightly acidic.
• Adds important minerals that may be beneficial to health.

How to perform remineralization:

• Using a remineralization cartridge that contains minerals like calcium and magnesium.
• Adding concentrated mineral solution through a dosing pump.
• Passing water through filter media containing minerals, such as limestone or dolomite.

It is important to ensure that the remineralization process is carried out carefully and in a controlled manner to maintain consistent water quality.
