How to Maintain Water Cleanliness and Sanitation at Refill Water Stations

Water is a basic human need that cannot be replaced.

In Indonesia, the water refill business has become a popular solution to fulfill people's drinking water needs. However, with this popularity comes a great responsibility to guarantee the quality and safety of the water provided. This article will take an in-depth look at how water refill businesses can ensure hygiene and sanitation at their filling stations, as well as various important aspects of managing these businesses.

The water refill business in Indonesia has grown rapidly in the past few decades. Many consumers choose this option because it is more affordable compared to bottled water. Some service providers claim to draw water from mountain sources, while others use municipal water or wells. Regardless of the source, the main challenge faced by all water refill service providers is the same: how to guarantee the quality of water that is safe and healthy for consumption.

Water refill business owners have a moral and legal obligation to serve customers with safe, high-quality water. They must understand that the systems they use are different from regular household systems. As commercial businesses, they need to use systems that are specifically designed to handle larger volumes of water and meet higher safety standards.

In this article, we will explore the various important aspects of running a clean and safe water refill business. From water source selection, treatment process, to storage and distribution, each stage plays a crucial role in ensuring the quality of the final product. We will also discuss the latest technology in water treatment, applicable regulations, and industry best practices.

Understanding Water Sources and Quality

Source: pexel.com

The first step in ensuring hygiene and sanitation at water refilling stations is to understand the source of the water used. In Indonesia, water sources for refill businesses vary from mountain water, groundwater, to PDAM water. Each source has its own unique characteristics and challenges.

Mountain water is often considered the best water source due to its freshness and purity. However, claims of "mountain water" need to be carefully verified. Not all water claimed to come from the mountains is truly pure or free from contamination. It is important for business owners to conduct periodic laboratory tests to ensure the quality of the water from the source.

Groundwater or well water is also a commonly used source. However, groundwater is susceptible to contamination from various sources, including industrial waste, agriculture, or even household septic tanks. Regular groundwater quality testing is essential to detect the presence of contaminants such as nitrates, bacteria, or heavy metals.

Tap water, although treated, still requires additional treatment before being used for refills. The quality of PDAM water can vary depending on location and existing infrastructure. Business owners need to understand the characteristics of PDAM water in their area and design a treatment system accordingly.

Regardless of the source, all water used for refill businesses must go through a series of tests to ensure its safety. Parameters that need to be tested include:

• pH
• Total Dissolved Solids (TDS)
• Concentration
• Microbiological content (such as E. coli and coliform)
• Chemical content (such as nitrate, fluoride, and heavy metals)

These tests should be conducted by an accredited laboratory and the results should be well documented. The test results are not only important to ensure water safety, but can also be an effective marketing tool to convince customers of the quality of the products offered.

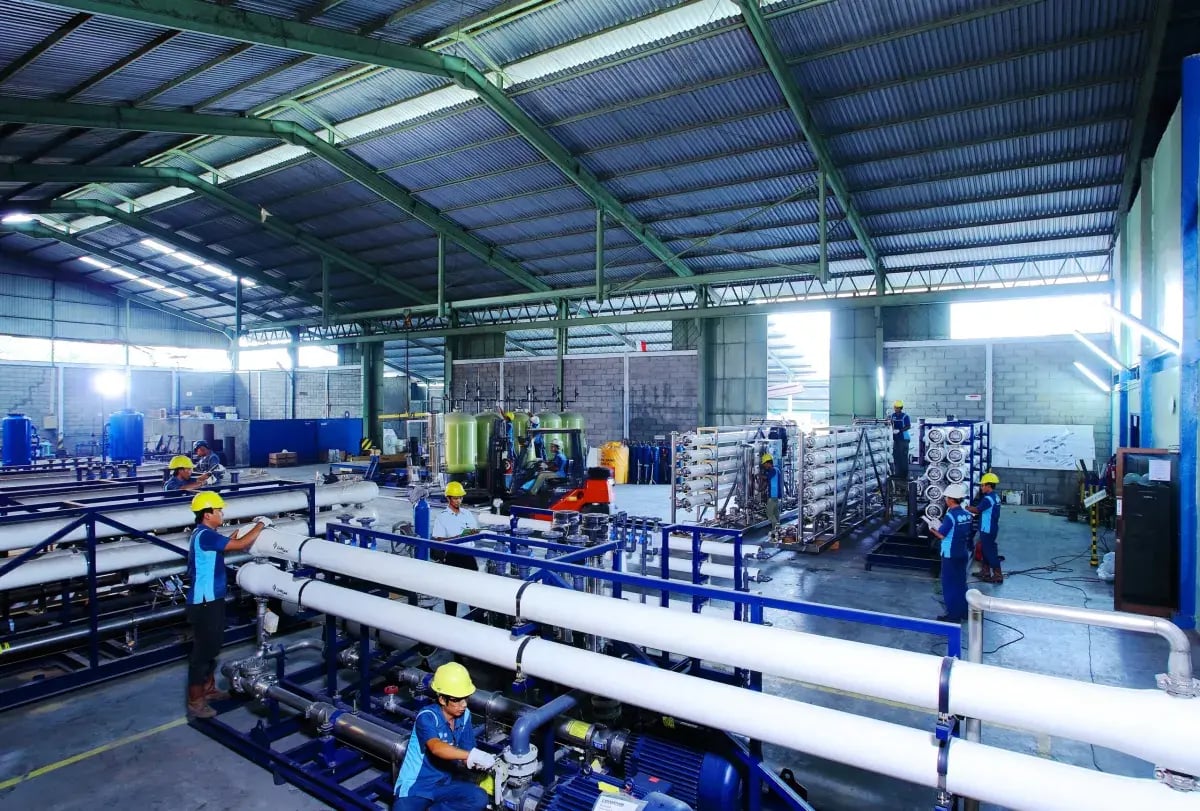

Water Treatment System for Refill Business

source

After understanding the quality of the water source, the next step is to design an effective treatment system. A water treatment system for a refill business usually consists of a few key components:

1. Raw water storage
2. Filtration system
3. Reverse Osmosis (RO) system (optional)
4. Disinfection system (UV and/or ozone)
5. Storage of treated water

Storage of raw water should be done in clean, sealed tanks to prevent contamination. These tanks should be cleaned periodically and equipped with proper overflow systems.

Filtration systems usually consist of several stages. The first stage is coarse filtration to remove large particles. This is followed by medium and fine filtration using media such as sand, anthracite, or activated carbon. Antracite media filters are particularly effective in removing fine particles and improving the taste of water.

For water with high TDS content or other dissolved contaminants, a Reverse Osmosis (RO) system may be required. RO is capable of removing almost all dissolved contaminants, including salts, heavy metals, and microorganisms. High-quality RO membranes are essential to ensure the efficiency and effectiveness of this process.

Disinfection is a critical step in water treatment. Ultraviolet light (UV) and ozone are two popular disinfection methods in the water refill industry. UV systems are effective in inactivating microorganisms, while ozone has the added advantage of providing a residual effect that helps keep water clean during storage.

It is important to note that water treatment systems for refill businesses should be designed for commercial use, not residential. This means the components used should be capable of handling larger volumes of water and more intensive use. For example, the pressure tank for a commercial RO system should have the appropriate capacity and durability.

Maintaining Hygiene and Sanitation at Filling Stations

Maintaining cleanliness and sanitation at filling stations is a crucial aspect in the water refill business. It is not just about maintaining water quality, but also about creating a hygienic and safe environment for customers and employees.

Firstly, the filling area should be designed with efficient and hygienic workflow in mind. Floors should be made of materials that are easy to clean and waterproof. Walls and ceilings should also be covered with materials that are waterproof and easy to clean. Good lighting is important to ensure hygiene can be maintained and monitored properly.

Filling equipment, including hoses and nozzles, should be cleaned and sanitized regularly. Cleaning procedures should be clearly documented and consistently implemented. The use of halal-certified filter cartridges can be a plus, especially in Muslim-majority Indonesia.

Employees handling the filling process should be trained on good hygiene practices. This includes regular hand washing, using gloves when handling equipment, and maintaining personal hygiene. Clean and uniform work clothes should also be provided and used.

Routine water quality monitoring is an integral part of maintaining hygiene and sanitation. This includes periodic microbiological and chemical testing. Test results should be documented and followed up if there are any deviations from the set standards.

The treated water storage system must also be kept clean. Storage tanks should be cleaned and sanitized periodically. The use of UV or ozone systems in storage tanks can help maintain water quality during storage.

In addition, the area around the filling station should also be kept clean. This includes parking areas, restrooms, and customer waiting areas. The overall cleanliness of the environment will give a positive impression to customers and reflect the business' commitment to quality and hygiene.

Recent Technology in Water Treatment for Refill Businesses

The water treatment industry continues to evolve with new technological innovations that can improve the efficiency and effectiveness of the treatment process. For water refill business owners, keeping up with these technological developments can provide a competitive advantage and ensure better product quality.

One technology that is gaining popularity is the high energy efficiency Reverse Osmosis (RO) system. Ultra low and extra low pressure RO membranes allow operation at lower pressures, saving energy without compromising on the quality of water produced. This not only reduces operational costs but also reduces environmental impact.

Ultrafiltration (UF) technology is also increasingly used in the water refill industry. The UF membrane is capable of removing very small particles, including bacteria and viruses, without the use of chemicals. This makes it an attractive option for businesses looking to reduce the use of chemicals in their treatment processes.

Automated monitoring and control systems are also becoming increasingly sophisticated. Real-time sensors can monitor various water quality parameters, such as TDS, pH, and turbidity, continuously. These systems can be integrated with software that enables remote monitoring and automatic alerts if there is any deviation from the set parameters.

Disinfection technologies are also constantly evolving. In addition to UV and ozone, technologies such as Advanced Oxidation Process (AOP) are starting to gain attention. AOP uses a combination of UV, ozone, and hydrogen peroxide to generate hydroxyl radicals that are highly effective in destroying organic contaminants and microorganisms.

The use of specialized RO systems for filling stations is also growing in popularity. These systems are specifically designed to meet the needs of water refill businesses, with appropriate capacities and features that ease operation and maintenance.

Innovations in tank design and distribution systems are also important. Pressurized storage tanks with more compact and efficient designs can optimize space usage at filling stations.

While these new technologies offer many benefits, it is important for business owners to conduct a thorough evaluation before adopting new technologies. Factors such as initial investment costs, long-term operational costs, maintenance needs, and compliance with local regulations should be carefully considered.

Water Quality Regulations and Standards

Understanding and complying with applicable water quality regulations and standards is a crucial aspect of running a water refill business. In Indonesia, regulations regarding drinking water quality are governed by the Ministry of Health through the Minister of Health Regulation (Permenkes) on Drinking Water Quality Requirements.

This regulation sets standards for various water quality parameters, including physical parameters (such as color, odor, taste, and turbidity), chemical parameters (such as pH, hardness, and metal content), and microbiological parameters (such as E. coli and total coliform). Water refill business owners must ensure that the water they produce meets or even exceeds these standards.

In addition to national regulations, some localities may have additional regulations to comply with. For example, some local governments may require periodic water quality testing by accredited laboratories. It is important for business owners to stay up-to-date with the latest regulations, both at the national and local level.

International standards such as those set by the World Health Organization (WHO) can also be referenced to improve water quality. While not legally binding, adopting WHO standards can be a plus for businesses, especially in terms of marketing and building consumer trust.

Halal certification is also an important consideration in Indonesia. The use of MUI halal-certified ion exchange resin can be an important step in meeting the needs of Muslim consumers.

Business owners also need to pay attention to regulations related to waste management. Water treatment processes, especially those using RO systems, produce wastewater that must be properly managed in accordance with applicable environmental regulations.

To ensure compliance with applicable regulations and standards, water refill businesses need to take several steps:

1. Conduct regular water quality testing by an accredited laboratory.
2. Document the test results and store them properly.
3. Conduct periodic internal audits to ensure all processes are in accordance with established standards.
4. Train employees on the importance of regulatory compliance and quality standards.
5. Work with consultants or experts in the field of water treatment to ensure the system used is always up-to-date and meets the latest standards.

Compliance with water quality regulations and standards is not just about avoiding legal sanctions, but also about building a good business reputation and maintaining consumer confidence. By meeting or even exceeding set standards, water refill businesses can position themselves as reliable providers of high-quality drinking water.

System Care and Maintenance

Good system maintenance is key to maintaining water quality and operational efficiency in a water refill business. A well-maintained system not only produces consistently high-quality water, but it can also extend equipment life and reduce long-term operational costs.

One important aspect of maintenance is regular cleaning and sanitization. All system components, from storage tanks to filling nozzles, should be cleaned and sanitized regularly. The use of a high-quality filter cartridge can help maintain water quality and simplify the maintenance process.

Monitoring and replacing filter media is also an important part of the maintenance routine. Filter media such as sand, anthracite, and activated carbon have a limited lifespan and need to be replaced periodically. Coal-based activated carbon is a popular choice for water filtration due to its effectiveness in removing odor, taste, and organic contaminants.

For RO systems, membrane maintenance is crucial. RO membranes need to be cleaned periodically to remove fouling and scaling. The use of specific RO membranes for filling stations can help optimize system performance and make maintenance easier.

Disinfection systems, both UV and ozone, also require regular maintenance. UV lamps need to be replaced periodically, usually every 9-12 months, depending on usage. Ozone generators also require regular inspection and maintenance to ensure their effectiveness.

Routine water quality monitoring is an integral part of the maintenance program. This includes testing parameters such as TDS, pH, and turbidity. The use of analyzers of pH and conductivity can help in real-time monitoring of water quality.

It is also important to have a structured preventive maintenance schedule. This includes regular checks of all system components, including pumps, valves, and control systems. Corrosion-resistant automatic valves can help improve system reliability and reduce maintenance needs.

Employee training in basic maintenance and troubleshooting is also important. Well-trained employees can detect problems early and make minor repairs, reducing downtime and repair costs.

Lastly, good documentation of all maintenance and repair activities is essential. This not only helps in tracking equipment history but can also be useful in identifying problem patterns and optimizing future maintenance schedules.

Conclusion

The water refill business plays a vital role in providing safe and affordable drinking water to Indonesians. However, with this role comes a great responsibility to guarantee hygiene and sanitation at every stage of the process, from the water source to the consumer's hand.

Maintaining hygiene and sanitation at filling stations is not just about meeting regulations, but also about building consumer trust and contributing to public health. This requires a holistic approach that includes proper selection of water sources, use of effective water treatment technologies, implementation of strict hygiene practices, and a comprehensive maintenance program.

Water refill business owners need to keep abreast of the latest technological and regulatory developments in the industry. Investments in high-quality equipment, such as pressure tanks & end ports or energy-efficient RO pumps, can provide a competitive advantage and ensure consistent product quality.

Consumer education is also an important aspect of running a responsible water refill business. Business owners should be transparent about their water sources, the treatment processes used, and the results of water quality testing. This not only builds trust but also increases public awareness about the importance of safe and quality drinking water.

By implementing best practices in hygiene and sanitation, adopting the latest technology, and committing to quality, water refill businesses can not only survive but also thrive in an increasingly competitive market. More so, they can contribute significantly to the improved health and well-being of the Indonesian people.

Q&A About Water Refill Business

1. Is mountain water always better than other water sources for refill business?

Not always. While mountain water is often considered a pure water source, its quality is still dependent on various environmental factors. Mountain water can be contaminated by human activities or natural factors. The most important thing is to test water quality regularly, regardless of its source. Water from any source, including PDAM or wells, can be a good choice as long as it is properly treated using technologies such as ultrafiltration membranes or RO systems.

2. How often should water quality testing be done in a refill business?

The frequency of water quality testing depends on local regulations and the characteristics of the water source. However, as a best practice, microbiological testing should be done at least once a month, while full chemical testing can be done every 3-6 months. Daily monitoring of basic parameters such as TDS, pH, and turbidity is also highly recommended. The use of a analyzer of pH and conductivity can help in this daily monitoring.

3. Is an RO system always necessary in a water refill business?

Not always, depending on the quality of the water source and the standards to be achieved. RO systems are very effective in removing almost all contaminants, including dissolved minerals, but also require higher investment and operational costs. For water sources with already good quality, a combination of multi-stage filtration and UV disinfection may be sufficient. However, if the water source has high TDS or there are concerns about certain contaminants, an RO system may be the right choice. The use of low pressure RO membranes can help reduce operational costs.

References

1. World Health Organization. (2017). Guidelines for drinking-water quality: fourth edition incorporating the first addendum. Geneva: World Health Organization.

2. Regulation of the Minister of Health of the Republic of Indonesia Number 492/MENKES/PER/IV/2010 on Drinking Water Quality Requirements.

3. Byrne, W. (2002). Reverse Osmosis: A Practical Guide for Industrial Users. Tall Oaks Publishing. "RO has become a popular water treatment technology, requiring the separation of a dissolved solute from its solvent, usually water. The most common application of RO is the purification of water, involving the removal of undesirable contaminants." (p. 8)

4. Spellman, F. R. (2013). Handbook of Water and Wastewater Treatment Plant Operations. CRC Press. "The effectiveness of disinfection is measured by testing for the presence or absence of coliform bacteria, which are generally not pathogenic but indicate the possibility of contamination." (p. 652)

5. Binnie, C., & Kimber, M. (2013). Basic Water Treatment (5th Edition). ICE Publishing. "A concept encouraged by WHO (1993) is that of multiple barriers, with respect to removal of pathogens, using several treatment stages to ensure a safer supply." (p. 48)
