Water Softener Techniques and Equipment for Household Water Treatment Systems

Water Softener Techniques and Equipment for Household Water Treatment Systems
16:53

Clean water is an essential basic need for every household.

However, the quality of available water does not always meet the desired standards. Issues such as water hardness, bacterial contamination, and high iron content are often obstacles in providing clean water at home. Therefore, an understanding of water softener techniques and equipment is crucial for homeowners looking to improve their water quality.

Household water treatment systems have come a long way in recent years, offering a variety of solutions to address water quality issues. From simple filtration systems to sophisticated reverse osmosis technology, there are many options available to consumers. However, choosing the right system requires a good understanding of the specific needs of the household and the characteristics of the water to be treated.

In this article, we will take an in-depth look at water softener techniques and equipment for household water treatment systems. We will explore the various methods used to address water hardness issues, remove contaminants, and improve overall water quality. In addition, we will also discuss the factors to consider when choosing the right water treatment system for your home.

A good understanding of this topic will not only help you make an informed decision in choosing a water treatment system, but will also allow you to maximize the benefits of your investment in household water quality improvement. Let's start by exploring the basics of household water treatment systems and then move on to specific water softener techniques and equipment.

Understanding Household Water Treatment Systems

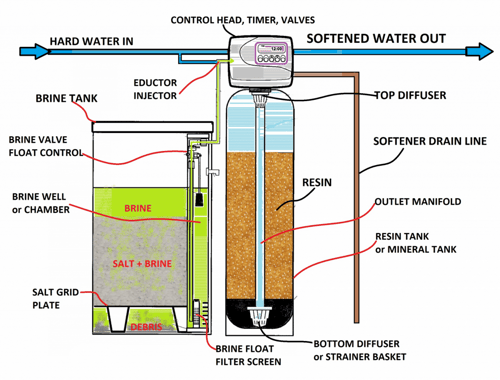

typical-water-softener-components-1140x868 (1)

Source: https://complete-water.com/

A domestic water treatment system typically consists of several key components that work together to improve water quality. These components can vary depending on the water source and the specific water quality issue, but generally include:

  1. Storage tank: Used to store water from the source (well or municipal water) before it is treated.
  3. Storage tanks.
  4. Pumps: Conveys water from the storage tank through the treatment system.
  5. Pumps.
  6. Filter: Removes solid particles and contaminants from water.
  7. Filter.
  8. Water softener: Reduces water hardness by removing minerals such as calcium and magnesium.
  9. Water softener.
  10. Disinfection system: Kills bacteria and other harmful microorganisms.
  11. Disinfection system.
  12. Pressure tank: Ensures consistent water pressure throughout the home.
  13. Pressure tank.

The water source for domestic systems typically comes from two main sources: well water or municipal water. Each of these sources has unique challenges in terms of treatment:

Well Water

Well water often faces issues such as:

  • High iron and manganese content
  • Potential bacterial contamination
  • High water hardness
  • Possibility of leakage from adjacent septic tanks

To address these issues, well water treatment systems may require a combination of iron filters (such as Birm media or manganese greensand), water softeners, and disinfection systems such as chlorination or UV.

City Water

City water, although generally treated, can still face several problems:

  • Chlorine taste and odor
  • Potential contamination from old distribution pipes
  • Variable water hardness
  • Possible presence of microplastics

Treatment systems for municipal water may focus on chlorine removal (using activated carbon filters), water softeners, and possibly reverse osmosis to address the microplastics issue.

Water Softener Techniques

Water softener is an important process in domestic water treatment systems, especially in areas with high hardness water. Hard water contains high concentrations of dissolved minerals, especially calcium and magnesium, which can cause a variety of problems such as scale formation on pipes and appliances, reduced effectiveness of soaps and detergents, and potential skin and hair irritation.

There are several water softener techniques available.

There are several water softener techniques commonly used in household water treatment systems:

  1. Ion Exchange

This method is the most commonly used for household water softeners. It uses ion exchange resins that replace calcium and magnesium ions with sodium ions. This Ion exchange resin needs to be regenerated periodically using saline solution.

How ion exchange systems work:

  1. Water flows through a tank containing ion exchange resin.
  2. Calcium and magnesium ions in the water are "exchanged" for sodium ions from the resin.
  3. Water exiting the system has a lower level of hardness.
  4. When the resin has been saturated with calcium and magnesium ions, the system regenerates using saline solution.

Ion exchange systems are very effective at reducing water hardness, but keep in mind that this process adds sodium to the water, which may be a concern for people who limit their salt intake.

  1. Reverse Osmosis (RO)

Reverse osmosis systems use semi-permeable membranes to remove various contaminants from water, including hardness-causing minerals. RO membranes can remove up to 99% of dissolved minerals, including calcium and magnesium.

The reverse osmosis process involves several stages:

  1. Pre-filtration: Removes large particles and chlorine to protect the RO membrane.
  2. Pre-filtration.
  3. High pressure: Water is forced through a semi-permeable membrane.
  4. High pressure.
  5. Separation: Water molecules pass through the membrane, leaving contaminants behind.
  6. Separation.
  7. Storage: Purified water is stored in a tank.
  8. Storage.
  9. Post-filtration: The final stage to improve the taste of the water before consumption.
  10. Post-filtration.

RO systems are very effective at removing a variety of contaminants, including hardness-causing minerals, but also remove minerals that may be beneficial. In addition, these systems produce a considerable amount of wastewater.

  1. Magnet or Electronic Based Water softener

This method uses magnetic fields or electronic signals to change the crystal structure of hardness-causing minerals. While they do not completely remove minerals from water, they can reduce scale formation.

How this system works:

  1. Water flows through a device that generates a magnetic field or electronic signal.
  2. This field or signal changes the crystal structure of hardness-causing minerals.
  3. Minerals that have been altered in structure are less likely to form scale.

The effectiveness of this method is still debated, and the results may not be as consistent as ion exchange or reverse osmosis methods.

  1. Water softener with Chemicals

This method involves adding chemicals to the water to denature hardness-causing minerals. One common approach is the use of polyphosphates, which "cloak" hardness-causing minerals and prevent them from forming scale.

Water softener process with chemicals:

  1. Chemicals such as polyphosphates are added to the water.
  2. These chemicals interact with hardness-causing minerals.
  3. This interaction prevents the minerals from forming scale or precipitate.

This method is effective for preventing scale formation but does not completely remove the minerals from the water.



Read also:

  • .

    Sea Water Treatment Into Drinking Water: Steps and Technology

    Sea Water Treatment to Drinking Water.



    Water softener equipment

    After understanding the various water softener techniques, let's discuss the specific equipment used in household water treatment systems:

    1. Ion Exchange Based Water Softener

    Fleck automatic valve

    This is the most commonly used equipment for water softeners in households. Its main components include:

    • Resin tank: Contains ion exchange resin.
    • Salt tank: Stores salt for the regeneration process.
    • Salt tank.
    • Control valve: Regulates water flow and regeneration process.
    • Control valve.

    The Fleck automatic valve from Pentair is one example of a popular control valve for water softener systems.

    1. Reverse Osmosis (RO) system

    A typical household RO system consists of:

    • Pre-filter: Typically a sediment filter and activated carbon.
    • Pre-filter.
    • RO membrane: The main component that performs water purification.
    • Storage tank: Stores the purified water.
    • Storage tank.
    • Post-filter: Improves the taste of water before consumption.
    • Post-filter.
    • Customized faucet: To access purified water.
    • Custom faucet.

    For households, the Merlin undersink RO system from Pentair is a popular choice.

    1. Electronic water softener devices

    This device usually consists of:

    • Electronic unit: Generates electromagnetic signals.
    • Cable wrapped around the water pipe: Transmits the signal to the water.

    1. Chemical Injection System

    dosing pump

    For chemical water softeners, the main components include:

    • Chemical tank: Stores polyphosphate solution or other chemicals.
    • Chemical tank.
    • Dosing pump: Injects the chemical into the water stream.
    • Dosing pump.
    • Injection point: Where the chemical is introduced into the water system.
    • Injection point.

    The Hydropro dosing pump is an example of equipment that can be used for chemical injection systems.

    1. Support Equipment

    Wellmate_tank_WM121.png.thumb.1280.1280

    In addition to the main equipment for the water softener, there are several supporting equipment that are important in household water treatment systems:

    • Pressure tank: The Wellmate pressure tank helps maintain consistent water pressure throughout the home.
    • Sediment filter: Removes solid particles from water before it enters the softening system.
    • Sediment filter.
    • Activated carbon filter: Removes chlorine and improves water taste and odor.
    • Active carbon filter.
    • UV system: Kills bacteria and other microorganisms.
    • UV system.

    Choosing the Right Water softener System

    Choosing the right water softener system for your home requires consideration of several factors:

    1. Source Water Quality

    The first step is to know the quality of your source water. Conduct a water test to determine the level of hardness, iron content, pH, and other contaminants. The results of these tests will help you choose the most suitable system.

    1. Daily Water Requirements

    Consider the amount of water used by your household every day. This will affect the size of the system you need.

    1. Available Space

    Make sure you have enough space to install your chosen system. Ion exchange systems require space for resin tanks and salt tanks, while RO systems require space for storage tanks.

    1. Cost

    Consider the initial cost and long-term operational costs. RO systems may have higher initial costs but lower running costs, while ion exchange systems have lower initial costs but require regular salt purchases.

    1. Maintenance

    Consider the level of maintenance required. Ion exchange systems require regular salt addition and periodic cleaning, while RO systems require periodic filter and membrane replacement.

    1. Flavor Preferences

    Some people may not like the taste of water that has been softened by ion exchange methods due to increased sodium content. In these cases, an RO system may be a better choice.

    Installation and Maintenance

    After choosing the right water softener system, proper installation and maintenance are essential to ensure optimal performance and long service life.

    Installation

    Maintenance

    Conclusion

    Water softeners are an essential component in household water treatment systems, especially in areas with high hardness water. By understanding the various techniques and equipment available, you can make an informed decision in choosing a system that suits your household's needs.

    Remember that there is no "one-size-fits-all" solution in water treatment. Each household has unique needs based on source water quality, water usage, and personal preferences. Therefore, it is important to do careful research, consult a professional if necessary, and consider all factors before making a decision.

    Invest in a water softener system for your household.

    Investing in the right water softener system can provide long-term benefits, including protection of household appliances from scale damage, increased efficiency of soap and detergent use, and overall improvement in water quality. With proper care and maintenance, your water softener system will provide high-quality water for your household for many years.

    Questions and Answers

    Is softened water safe to drink?

  • Is softened water safe to drink?

    Answer: Softened water is generally safe to drink. However, the ion exchange water softener process adds a small amount of sodium to the water. For people on a low-sodium diet, this may be a concern. In cases like this, using a reverse osmosis system or having a separate drinking water line that does not go through the water softener could be a solution.

    1. How often should I replace the resin in a water softener system?

    Answer: The resin in a water softener system usually lasts quite a long time, about 10-15 years with good maintenance. However, this can vary depending on source water quality, usage levels, and regeneration efficiency. If you notice a decline in system performance despite regular regeneration and maintenance, it may be time to replace the resin.

    1. Does the reverse osmosis system remove beneficial minerals from the water?

    Answer: Yes, reverse osmosis systems do remove most minerals from water, including beneficial ones like calcium and magnesium. However, most people get the minerals they need from food, not from drinking water. If you are concerned about this, you could consider using a remineralization filter after the RO process or consuming bottled mineral water regularly.

    References

  • Spellman, F. R. (2013). Handbook of water and wastewater treatment plant operations. CRC Press. "Hardness in water is caused by the presence of certain positively charged metallic ions in solution, such as calcium and magnesium. The most common hardness-causing ions are calcium and magnesium, but others include iron, strontium, and barium." (p. 636)
  • Binnie, C., & Kimber, M. (2013). Basic water treatment (5th ed.). ICE Publishing. "Softening by ions, colloid destabilization, disinfection use, ferric/aluminum ions, hardness, removal factors, Ireland, quality regulations, water industry structure, iron, aeration, coagulation with, pre-chlorination, removal processes, reservoir stratification, isotherms" (p. 288)
  • American Water Works.
  • American Water Works Association. (2011). Water quality and treatment: A handbook on drinking water. McGraw-Hill. "Reverse osmosis (RO) has become a popular water treatment technology, requiring the separation of a dissolved solute from its solvent, usually water. The most common application of RO is the purification of water, involving the removal of undesirable contaminants." (p. 8)
  • World Health Organization. (2017). Guidelines for drinking-water quality: Fourth edition incorporating the first addendum. WHO. "Water softening is a process that removes calcium, magnesium, and certain other metal cations in hard water. The resulting soft water requires less soap for the same cleaning effort, as soap is not wasted bonding with calcium ions." (p. 122)

    •
    ,
