Water is a basic need that cannot be separated from daily life. In the context of households, the...
Clean water is a fundamental need for every household.
However, the quality of available water does not always meet the desired standards. Various contaminants such as hardness, iron, manganese, and bacteria can affect the taste, odor, and safety of the water we use daily. Therefore, household water treatment systems are becoming an increasingly popular solution to ensure a safe and high-quality water supply.
One of the key components in domestic water treatment systems is ion exchange resins. These resins play an important role in removing unwanted ions from water, such as calcium and magnesium that cause hardness. However, choosing the right resin is not an easy task. There are various types of resins with different characteristics and uses. In this article, we will take an in-depth look at selecting the right resin for ion exchange systems in domestic water treatment.
Before we dive into the types of resins and how to select them, let us first understand why domestic water treatment is so important. Most domestic water systems use stored municipal water or well water, or sometimes both. This water is then pumped through filters or softeners to remove substances like iron, silica, or other contaminants. Some systems even use reverse osmosis (RO) for further purification.
For those who use well water, common problems include iron, manganese, and the possible presence of bacteria due to leaks from septic tanks. Meanwhile, municipal water that comes from rivers can also be contaminated by household and cottage industry waste. Many people are turning to refilling water bottles, but this can also pose a microplastic problem.
The solution we recommend is a whole house water treatment system installed at the point of entry of water from a well or the city. If using municipal water, a carbon filter or softening is usually sufficient, followed by chlorination. However, some people dislike the smell of chlorine, which is actually a sign of well-disinfected water.
Understanding Ion Exchange Systems
Ion exchange systems are one of the most effective water treatment methods for dealing with hardness issues and other dissolved contaminants. Its working principle is relatively simple yet highly efficient. Ion exchange resins consist of a polymer matrix containing charged functional groups. When water flows through the resin, the unwanted ions in the water will be "exchanged" with the ions present on the resin.
For example, in the process of water treatment, ions in the water are exchanged for ions in the resin.
For example, in the water softening process, cation resins will exchange calcium (Ca2+) and magnesium (Mg2+) ions that cause hardness with sodium (Na+) ions. The result is water that is more "soft" and free from problems caused by hardness, such as scale on appliances and pipes.
The effectiveness of ion exchange systems is highly dependent on their effectiveness.
The effectiveness of an ion exchange system depends largely on the type of resin used. There are several factors that influence resin selection, including:
- Type of contaminant to be removed
- Concentration of contaminants in water
- PH of water
- Desired flow rate
- Expected regeneration frequency
Understanding these factors will help you in selecting the most suitable resin for your household water treatment needs.
Types of Ion Exchange Resins
There are several main types of ion exchange resins commonly used in domestic water treatment systems:
Strong Acid Cation (SAC) Resin
These machines are very effective for removing hardness and other metal ions. They have high selectivity towards ions such as calcium, magnesium, iron, and manganese. The Purolite ion exchange machine is one example of a high-quality product in this category.
Strong Base Anion (SBA) Machines
These machines are used to remove anions such as nitrate, sulfate, and chloride. They are also effective in reducing total dissolved solids (TDS) in water.
Weak Acid Cation (WAC) Machines
These machines are more selective to multivalent ions and are easier to regenerate compared to SAC resins. They are often used in dealkalization systems.
Weak Base Anion (WBA) Resins
These machines are effective in removing strong mineral acids and are suitable for water with high CO2 content.
Chelating Engines
These types of machines have very high selectivity towards specific heavy metal ions. They are often used to remove contaminants such as copper, nickel, and lead.
The choice of the right type of resin will largely depend on the characteristics of the water to be treated and the desired results. For example, if the main issue is water hardness, a strong acid cation resin may be the best choice. However, if the water contains other inorganic contaminants such as nitrate or sulfate, a combination of cation and anion resins may be required.
Factors in Resin Selection
When selecting a resin for a household ion exchange system, there are several important factors to consider:
- Exchange Capacity:This refers to the amount of ions that a resin can exchange before it needs to be regenerated. Resins with a higher exchange capacity will require less frequent regeneration.
- Selectivity: Different types of resins have different selectivity towards certain ions. It is important to choose a resin that has high selectivity to the contaminants you want to remove from your water.
- Selectivity: Different types of resins have different selectivity to certain ions.
- Resistance to Fouling: Some resins are more resistant to fouling by organic matter or suspended particles. This is especially important if your raw water contains a lot of organics or particulate matter.
- Chemical Stability: Resins should be resistant to degradation by chemicals that may be present in the water, such as chlorine or other oxidants.
- Performance at Various pH:Some resins perform better at certain pH ranges. Make sure that the resin you choose matches the pH of the water to be treated.
- PH
- Flow Rate:The resin should be able to handle the flow rate required by your system without sacrificing ion exchange efficiency.
- Cost and Availability: Consider the initial cost of the resin as well as long-term costs for regeneration and replacement.
Considering these factors will help you choose the resin best suited for the specific needs of your household water treatment system.
Comprehensive Household Water Treatment System
While ion exchange resin is a critical component, an effective domestic water treatment system usually consists of several treatment stages. Here's an overview of the components you might encounter in a comprehensive household water treatment system:
- Pre-filtration: This stage uses sediment filters to remove large particles such as sand, silt, and dirt. A Pentair Pentek cartridge filter is a good choice for this stage.
- Water Softening: This is the stage where ion exchange resins come into play. These systems remove water hardness by exchanging calcium and magnesium ions for sodium ions.
- Water Softening: This is the stage where ion exchange resins come into play.
- Active Carbon Filtration:Active carbon filters remove chlorine, odors, bad tastes, and some organic contaminants. Calgon's coal-based activated carbon is a very effective product for this stage.

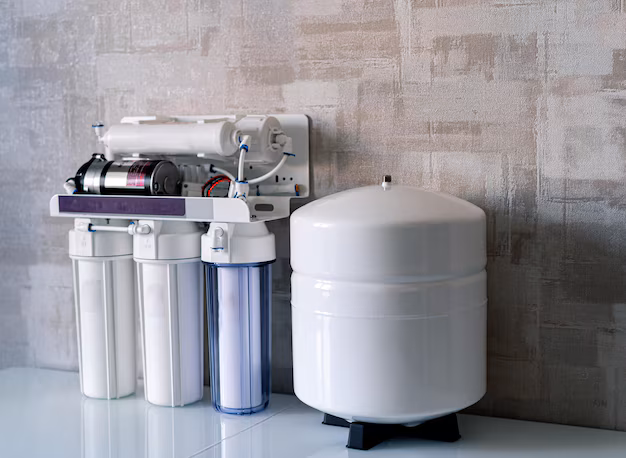

- Reverse Osmosis (RO): For more in-depth water purification, an RO system can be used. These are effective in removing a variety of contaminants including dissolved salts, bacteria, and even some viruses. The Pentair Merlin RO system is a good choice for under-sink use.
- UV disinfection: To ensure the water is free of harmful microorganisms, a UV system can be used as the final stage. The Hydropro ultraviolet system is an example of an effective product for this stage.
Each stage in this system has an important role in producing safe, high-quality water. However, not all households require all of these stages. Specific needs will depend on raw water quality and user preferences.
Resin Maintenance and Regeneration
After selecting the right resin and installing the ion exchange system, proper maintenance is essential to ensure optimal performance and long service life. One key aspect of maintenance is resin regeneration.
Regeneration is the process by which a resin that has been saturated with ions removed from water is "cleaned" and returned to its original condition. For cation resins used in water softening, regeneration is usually done with a salt solution (NaCl). This process replaces the calcium and magnesium ions that have been absorbed by the resin with sodium ions, preparing the resin for the next softening cycle.
The frequency of regeneration will depend on how much water the resin has absorbed.
The frequency of regeneration will depend on several factors, including:
- Resin capacity
- Raw water hardness level
- Volume of water treated daily
Modern systems are often equipped with automatic controllers that can start the regeneration process based on the volume of water that has been treated or a predetermined schedule. This ensures that the resin is always in optimal condition to perform ion exchange.
In addition to regular regeneration, maintenance of ion exchange systems also involves:
- Periodic inspection for leaks or damage
- Regular cleaning of the salt tank
- Replacement of pre-filters as needed
- Monitoring of produced water quality
With proper maintenance, an ion exchange system can operate efficiently for many years, providing a high-quality water supply for your household.
Conclusion
Choosing the right resin for an ion exchange system in household water treatment is an important step in ensuring a safe, high-quality water supply. By understanding the different types of resins available, the factors that influence selection, and the other components in a comprehensive water treatment system, you can make the right decision for your household's specific needs.
Remember that there is no one-size-fits-all when it comes to ion exchange systems.
Remember that there is no "one-size-fits-all" solution in water treatment. Each household has unique needs based on water source, raw water quality, and user preferences. Therefore, it is highly recommended to consult with an experienced water treatment professional before making a final decision.
With a designed ion exchange system, you will be able to get the most out of your water treatment program.
With a properly designed and maintained ion exchange system, you can enjoy soft, clean, and safe water for your various household needs. Investing in a quality water treatment system will not only improve your daily quality of life, but it can also protect your household appliances from damage due to poor quality water, saving you costs in the long run.
Questions and Answers
1. Are ion exchange systems safe for use in drinking water treatment?
Yes, ion exchange systems are safe to use for drinking water treatment if designed and operated properly. The ion exchange resins used in these systems have gone through rigorous safety testing and are approved for use in drinking water treatment. However, it is important to ensure that your system is regularly maintained and regenerated to prevent bacterial growth or other contamination.
2. How long do ion exchange resins typically last before needing to be replaced?
The lifespan of ion exchange resins can vary depending on raw water quality, volume of use, and system maintenance. With proper care, high-quality resins can last between 10 to 15 years. However, under certain conditions such as water with high iron content or excess chlorine, the resin may need to be replaced sooner. Regular monitoring of system performance can help determine when the resin needs to be replaced.
3. How can I tell if an ion exchange system is not working properly?
Some signs that indicate an ion exchange system may not be functioning optimally include:
- Water feels hard again (for water softening systems)
- Significant drop in water pressure
- Change in water color or taste
- Unusual increase in salt usage
- System not regenerating automatically
If you observe any of these signs, it is advisable to have the system checked by a professional.
References
1. Inglezakis, V. J., & Poulopoulos, S. G. (2006). Adsorption, Ion Exchange and Catalysis: Design of Operations and Environmental Applications. Elsevier Science.
2. Spellman, F. R. (2008). Handbook of Water and Wastewater Treatment Plant Operations. CRC Press.
3. Binnie, C., & Kimber, M. (2013). Basic Water Treatment (5th Edition). ICE Publishing.
4. Byrne, W. (2002). Reverse Osmosis: A Practical Guide for Industrial Users. Tall Oaks Publishing.
5. Environmental Protection Agency Ireland. (n.d.). Water Treatment Manual: Disinfection.
