Components, Filters, and Applications in Water Treatment Systems

Clean water is a basic need that is very important for every household.

However, the quality of available water does not always meet the desired standards. That's why household water treatment systems are becoming an increasingly popular solution. In this article, we will take an in-depth look at the various components, filters, and applications of water treatment systems, the different types of filters used, and their applications in everyday life.

Modern household water treatment systems have come a long way in recent years. Today, a variety of advanced technologies are available to ensure that the water we consume is free from contaminants and safe for use. From simple filters to complex reverse osmosis systems, there are many options that can be tailored to the specific needs of each household.

Before we dive into the components of a water treatment system, it is important to understand the sources of water that are commonly used in households. Most homes use water from two main sources: municipal water (PDAM) or well water. Each of these sources has different water quality challenges.

City water, although treated at government facilities, can still contain contaminants such as chlorine, sediment, or even microplastics. Well water, on the other hand, often faces issues such as high iron and manganese content, as well as potential bacterial contamination from leaking septic tanks.

Considering the complexity of water quality issues, it is important to recognize that well water is not the only source of water quality.

Given the complexity of these water quality issues, comprehensive household water treatment systems are becoming an increasingly desirable solution. Let's talk more about the key components in these systems.

Main Components of Household Water Treatment System

1. Storage Tank

The storage tank is an important component in the household water treatment system. Its function is to store water from the source (be it city water or well water) before it enters the further treatment process. The tank also serves as a buffer, ensuring a steady supply of water despite fluctuations in the water source.

For homes that use well water, storage tanks become very important as they can store large amounts of water, reducing the frequency of well pump operations. Wellmate pressure storage tanks are one example of a product that can be used for this purpose.

2. Pump

Pumps play an important role in moving water from the storage tank through the various stages of treatment. Proper pump selection is essential to ensure consistent water flow and sufficient pressure to pass through the various filters and membranes in the system.

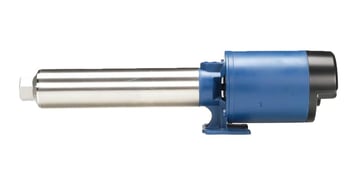

For systems using reverse osmosis (RO) technology, specialized pumps are required to generate the high pressure needed. Flint and Walling RO pumps are examples of high-quality pumps designed specifically for RO systems.

3. Pre-filter

Pre-filters are the first line of defense in a water treatment system. Its function is to remove large particles such as sand, sediment, and other impurities. The pre-filter protects the more sensitive components of the system from damage and clogging.

One commonly used type of pre-filter is the cartridge filter. The Pentair Pentek cartridge is an example of a product that has been NSF-certified for various water treatment applications.

4. Softener

Water softeners are used to remove the minerals that cause water hardness, especially calcium and magnesium. Hard water can cause scaling in pipes and equipment, reducing the efficiency and lifespan of the system.

Softeners typically use ion exchange resins to replace calcium and magnesium ions with sodium ions. Dionix MUI Halal certified ion exchange resin is an example of a product that can be used in softener systems.

5. Specialty Filters

Depending on the quality of the source water, specialized filters may be required to address specific issues. For example, for water with high iron content, specialized filters such as Clack Birm iron removal media or Inversand manganese greensand may be used.

6. Reverse Osmosis (RO) System

For more in-depth water treatment, especially for drinking water, reverse osmosis systems are often used. RO systems use semi-permeable membranes to remove almost all contaminants, including bacteria, viruses, and even dissolved salts.

There are different types of RO membranes available, such as DuPont Filmtec brackish water membranes for brackish water, or Xelect ULP and XLP RO membranes for applications requiring low pressure.

7. Disinfection System

The final step in household water treatment is usually disinfection to ensure the water is free of harmful microorganisms. Commonly used disinfection methods include chlorination and ultraviolet (UV) light.

UV systems such as Hydropro Ultraviolet are very effective in inactivating bacteria and viruses without adding chemicals to the water.

Types of Filters and Their Applications

After discussing the main components, let's explore in more detail about the different types of filters used in household water treatment systems and their specific applications.

1. Sediment Filters

Sediment filters are the most basic type of filter used to remove large particles such as sand, silt, and dirt. This filter is usually the first stage in a multi-stage water treatment system.

Applications: Sediment filters are essential for protecting other system components from damage due to coarse particles. They also help extend the life of other filters in the system.

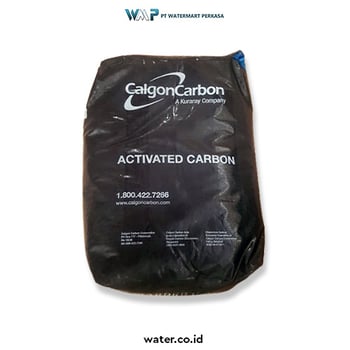

2. Activated Carbon Filters

Activated carbon filters are highly effective in removing chlorine, odor, bad taste, and various organic contaminants from water. Activated carbon works through a process of adsorption, where contaminants stick to the surface of the carbon.

Applications: Activated carbon filters are often used to improve the taste and odor of water, as well as remove chlorine before the water enters the RO system. Products such as Calgon coal-based activated carbon are examples of commonly used carbon filter media.

3. KDF (Kinetic Degradation Fluxion) Filter

KDF filters use a redox process to remove chlorine, iron, hydrogen sulfide, and other heavy metals from water. This filter also has anti-bacterial properties.

Applications: KDF filters are often used in combination with activated carbon filters to increase the effectiveness of water treatment, especially in addressing odor and taste issues.

4. Multimedia Filter

The multimedia filter utilizes multiple layers of filtration media with varying particle sizes. This allows for more effective filtration of a wide range of particle sizes.

Applications: Multimedia filters are very effective for removing various types of sediment and suspended particles. They are often used as pre-filters in larger water treatment systems.

5. Iron and Manganese Filters

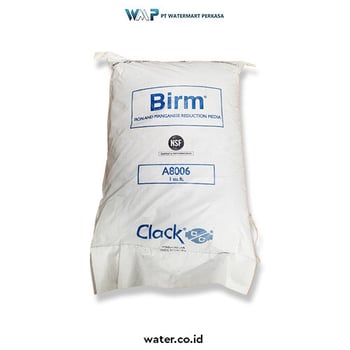

Specialized filters to remove iron and manganese are essential for homes using well water. Media like Clack Birm iron removal media or Inversand manganese greensand are used to oxidize and remove iron and manganese from water.

Applications: These filters are essential for preventing stains on clothing and sanitary equipment, as well as preventing metallic tastes and odors in water.

6. Reverse Osmosis (RO) Filter

RO systems use semi-permeable membranes to remove nearly all contaminants from water, including bacteria, viruses, and dissolved salts.

Applications: RO systems are often used to produce high-quality drinking water. For households, systems like the Pentair Merlin undersink reverse osmosis can be an effective solution.

7. Ultrafiltration (UF) Filter

UF filters use membranes with larger pores than RO, but are still capable of removing most bacteria and viruses.

The UF filter uses a membrane with larger pores than RO.

Applications: UF filters are often used as an alternative or complement to RO systems, especially when finer filtration is required without removing essential minerals from the water. Products such as Asahi ultrafiltration membranes can be used for this purpose.

Household Water Treatment System Applications

After understanding the components and types of filters used, let's discuss how household water treatment systems can be applied in various scenarios.

1. Well Water Treatment System

For homes using well water, the water treatment system usually consists of:

• Storage tank and pump
• Sediment pre-filter
• Iron and manganese filter (if required)
• Softener (if water is hard)
• Activated carbon filter
• Disinfection system (UV or chlorination)

This system is designed to address common well water problems such as high iron content, hardness, and potential bacterial contamination.

2. Municipal Water Treatment System

For homes that use PDAM water, the water treatment system may be simpler:

• Sediment pre-filter
• Activated carbon filter (to remove chlorine and improve taste)
• Softener (if required)
• Point-of-use RO system for drinking water (optional)

This system focuses on improving the quality of water already treated by the government, mainly to remove residual chlorine and improve taste.

3. Specialized Drinking Water Treatment System

For high-quality drinking water needs, a point-of-use RO system such as the Pentair Merlin undersink reverse osmosis can be installed under the kitchen sink. These systems typically consist of:

• Sediment pre-filter
• Activated carbon filter
• RO membrane
• Post-filter carbon (to improve taste)
• Small storage tank

This system produces high-quality drinking water that is free of almost all contaminants.

4. Whole House Water Treatment System

For all-around protection, some households choose to install a whole-house water treatment system. These systems typically consist of:

• Sediment pre-filter
• Softener
• Activated carbon filter
• UV disinfection system
• Whole house RO system (for luxury homes)

These systems ensure that all water used in the home, whether for drinking, bathing, or washing, is properly treated.

Household Water Treatment System Maintenance

Routine maintenance is essential to ensure the household water treatment system is functioning optimally. Some important maintenance steps include:

• Regular filter replacement as per manufacturer's recommendations
• Cleaning and sanitizing of storage tanks
• Checking and calibration of sensors and controllers
• Regeneration of filter media such as softeners and iron/manganese filters
• Ro membrane inspection and replacement if required
• Regular water quality checks to ensure the system is functioning properly

It is important to note that while household water treatment systems can be very effective, they are not a "plug and forget" solution. Regular maintenance and water quality monitoring are still necessary to ensure safe and healthy water for your family.

Conclusion

Household water treatment systems have become an essential component in ensuring clean and safe water supply in modern homes. With a variety of technologies and components available, every household can design a system that suits their specific needs, whether it's addressing well water issues, improving the quality of tap water, or producing high-quality drinking water.

The right choice of components, whether it's to solve well water problems, improve the quality of tap water, or produce high-quality drinking water, is the right choice.

Choosing the right components, from storage tanks to specialized filters and disinfection systems, is critical to ensuring the effectiveness of the system. High-quality products such as Wellmate pressure storage tanks, Flint and Walling RO pumps, and the various types of filters and membranes already mentioned, can help build a reliable and efficient water treatment system.

However, it's important to keep in mind that it's important to keep in mind that there are many different types of water treatment systems available.

However, it is important to remember that there is no "one-size-fits-all" solution in household water treatment. Each home has unique water quality challenges, and the treatment system should be designed with factors such as water source, initial water quality, usage needs, and budget in mind.

With a good understanding of the components of a water treatment system, the types of filters available, and their applications, you can make informed decisions to ensure a safe and healthy water supply for your family. Don't forget that regular maintenance and water quality monitoring remain key to ensuring your household water treatment system remains optimally functional in the long run.

Question and Answer About Household Water Treatment System

1. Is a household water treatment system really necessary if I use PDAM water?

Although PDAM water has gone through a treatment process, a household water treatment system can still be beneficial. PDAM water may still contain residual chlorine, sediment, or other contaminants that can affect the taste and odor of the water. In addition, the non-optimal condition of distribution pipes can cause secondary contamination. A household water treatment system can help address these issues and provide additional assurance of the quality of the water you consume.

2. How do I choose the right water treatment system for my home?

The choice of the right water treatment system depends on several factors:

• Source of water (PDAM or well)
• Initial water quality (do a lab test)
• Water usage needs (drinking only or whole house)
• Available budget
• Space available for system installation

3. Do reverse osmosis (RO) systems remove essential minerals from water?

Yes, RO systems do remove most minerals from water, including beneficial minerals. However, many experts argue that we get most of the minerals our body needs from food, not from water. If you are concerned, you could consider an RO system with remineralization or use an alternative filter such as ultrafiltration that retains more minerals.

References

1. Byrne, W. (2002). Reverse osmosis: A practical guide for industrial users. Tall Oaks Publishing. Page 76.

2. Hendricks, D. W. (2006). Fundamentals of water treatment unit processes: Physical, chemical, and biological. CRC Press. Page 79.

3. Spellman, F. R. (2003). Handbook of water and wastewater treatment plant operations. CRC Press. Page 630.

4. Binnie, C., & Kimber, M. (2013). Basic water treatment (5th ed.). ICE Publishing. Page 310.

5. Byrne, W. (2002). Reverse osmosis: A practical guide for industrial users. Tall Oaks Publishing. Page 171-172.
