Importance of Sediment Pre-filter in RO System for Water Treatment

Clean water is a basic need that is very important for human life.

However, as the population and industrial activities increase, the quality of water available for domestic consumption is deteriorating. This causes the need for effective and efficient water treatment systems to become increasingly urgent. One technology that is often used in water treatment is the Reverse Osmosis (RO) system. However, in order for the RO system to function optimally, a sediment pre-filter is required which plays an important role in maintaining water quality and extending the life of the RO membrane.

In this article, we will take an in-depth look at the importance of sediment pre-filters in RO systems for domestic water treatment. We will explore various aspects related to household water treatment systems, ranging from commonly used water sources, challenges faced, to solutions that can be implemented to produce safe and high-quality clean water.

Water Sources and Challenges in Household Water Treatment

Household water treatment systems generally use water sources that come from municipal water, well water, or a combination of both. Each of these water sources has its own characteristics and challenges in the treatment process.

City water, although treated at the water supply facility, can still contain various contaminants. Some cities use river water as a raw water source, which has the potential to be contaminated by domestic and industrial waste. This can lead to the presence of pathogenic microorganisms, heavy metals, or hazardous chemicals in the water that is distributed to homes.

On the other hand, well water is the most common source of contaminants.

On the other hand, well water, which is often used by households in areas not covered by the municipal water network, also poses its own challenges. Well water often contains high levels of iron and manganese, which can cause the water to have a brownish color and metallic taste. In addition, well water is also at risk of bacterial contamination due to leaks from septic tanks or other sources of pollution.

Another challenge faced in household water treatment is the presence of microplastics. Many people use drinking water refill services, but this can also pose a problem regarding microplastic contamination from the bottles used.

Household Water Treatment Solution

To overcome the various challenges in domestic water treatment, there are several solutions that can be applied. One of the most effective solutions is the use of a whole house water treatment system installed at the point of entry from a municipal water source or well.

For municipal water, a whole house water treatment system is installed at the point of entry from a municipal water source or well.

For municipal water, commonly used treatment systems include an activated carbon filter or water softener, followed by a chlorination process. Activated carbon filters are effective in removing odor, taste, and organic contaminants, while water softeners serve to reduce water hardness. The chlorination process is important to ensure the water remains safe from microbial contamination during distribution within the home.

For those using well water, especially with high levels of iron and manganese, the use of a greensand or birm manganese filter is highly recommended. If iron levels are relatively low, the use of a water softener may also be an option. However, the most important thing is to ensure that there is a disinfection process, either through chlorination or the use of UV light, to remove bacteria and other pathogenic microorganisms.

To address the issue of microplastics, it is important to use a water softener.

To address the issue of microplastics and other contaminants, the use of a Point of Use (POU) Reverse Osmosis (RO) system such as Pentair Merlin Undersink Reverse Osmosis can be an effective solution. RO systems are capable of filtering out various types of contaminants, including microplastics, heavy metals, and dissolved salts, resulting in highly purified drinking water.

Main Components in a Household Water Treatment System

A comprehensive domestic water treatment system consists of several key components, including:

1. Raw water storage tank: Serves to collect water from the source (wells or municipal water).
2. Pumps.
3. Pump: Used to convey water from the storage tank to the treatment system.
4. Pumps.
5. Filters: Consists of different types of filters such as sediment filters, activated carbon, or specialized filters such as Clack Birm Iron Removal Media for iron removal.
6. Filters.
7. Top storage tank: Serves to store treated water before it is distributed throughout the house.
8. Top storage tank.
9. Distribution pump: Delivers water from the upper storage tank to points of use in the home.
10. Distribution pump.
11. Pressure tank: Like Wellmate Pressure Storage Tanks, serves to maintain stable water pressure throughout the home's distribution system.
12. Pressure tanks.
13. RO system (optional): For further treatment at specific points of use, such as in the kitchen for drinking water.

Importance of Sediment Pre-filter in RO System

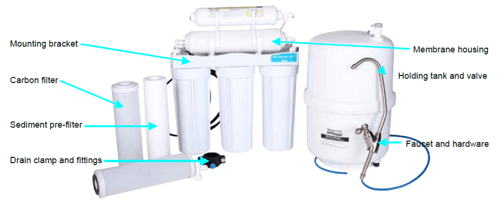

One of the crucial components in domestic water treatment systems, especially those using Reverse Osmosis (RO) technology, is the sediment pre-filter. The sediment pre-filter plays a very important role in maintaining the effectiveness and efficiency of the RO system as a whole.

The sediment pre-filter serves as the first line of defense in an RO system. Its main purpose is to remove large particles and sediments from the water before it enters the RO membrane. This is very important because RO membranes are very sensitive and can be easily clogged or damaged by coarse particles.

Some of the key benefits of using a sediment pre-filter are that it can be used to remove large particles from the water.

Some of the key benefits of using a sediment pre-filter in an RO system include:

1. Extends RO membrane life: By removing sediment and large particles, sediment pre-filters prevent clogging and damage to RO membranes, thereby extending their lifespan.
2. Extends the life of RO membranes.
3. Increases system efficiency: Water that has gone through the sediment pre-filter will be more easily treated by the RO membranes, increasing the overall efficiency of the system.
4. Increases system efficiency.
5. Reduce cleaning and maintenance frequency: By reducing the workload on the RO membrane, the sediment pre-filter also reduces the overall cleaning and maintenance needs of the system.
6. Reduces the frequency of cleaning and maintenance.
7. Improved final water quality: Sediment pre-filters help produce water that is clearer and free of coarse particles before it enters the RO treatment stage.

Sediment pre-filters generally consist of filter cartridges with varying levels of filtration. For example, Pentair Pentek Cartridge offers a wide selection of cartridge filters that can be used as sediment pre-filters in RO systems. These filters typically have a filtration rating ranging from 5 microns to 20 microns, depending on the raw water quality and system requirements.

Sediment Pre-filter Selection and Maintenance

Choosing the right sediment pre-filter is critical to ensure optimal performance of the RO system. Some factors to consider in selecting a sediment pre-filter include:

1. Raw water quality: If the raw water contains a lot of sediment or coarse particles, a pre-filter with a larger filtration rating may be required.
2. System flow rate.
3. System flow rate: The pre-filter should be able to handle the water flow rate required by the RO system without causing a significant pressure drop.
4. System flow rate.
5. Sediment holding capacity: Filters with greater sediment holding capacity will require less frequent replacement.
6. Sediment holding capacity.
7. Compatibility with the system: Ensure that the pre-filter selected is compatible with the existing filter housing and connectors on the RO system.
8. Compatibility with system.

Sediment pre-filter maintenance is also an important aspect of maintaining RO system performance. Some sediment pre-filter maintenance tips include:

1. Regular replacement: The sediment pre-filter should be replaced regularly, usually every 2-3 months or more frequently if the raw water contains a lot of sediment.
2. Pressure monitoring: Watch for a drop in water pressure after passing through the pre-filter. If there is a significant drop in pressure, this may signal that the filter needs to be replaced.
3. Pressure monitoring: Watch for a drop in water pressure after passing through the pre-filter.
4. Cleaning of the filter housing: When replacing the filter cartridge, clean the filter housing as well to prevent the accumulation of dirt and bacteria.
5. Cleaning the filter housing.
6. Use of graduated filters: For water with a high sediment content, consider using a graduated filter system, e.g. starting with a 20 micron filter, followed by a 5 micron filter.
7. Filters.

Integration of Sediment Pre-filters in Domestic Water Treatment Systems

In a comprehensive domestic water treatment system, a sediment pre-filter is usually integrated as part of the initial treatment circuit before the water enters the RO system. The general sequence of household water treatment utilizing an RO system is as follows:

1. Sediment pre-filter: Removes coarse particles and sediment.
2. Activated carbon filter: Removes chlorine, odor, and bad taste.
3. Active carbon filter.
4. Water softener (if required): Reduces water hardness.
5. Water softener (if required).
6. RO system: Removes dissolved contaminants, including salts, heavy metals, and microorganisms.
7. Ro system.
8. Post-filter (optional): Improves water taste after the RO process.
9. Post-filter (optional).
10. UV sterilizer (optional): Kills microorganisms that may escape the RO process.
11. UV sterilizer (optional).

In this configuration, the sediment pre-filter plays a crucial role in protecting more sensitive system components, such as the RO membrane, from damage due to coarse particles and sediment.

Challenges and Solutions in the Use of Sediment Pre-filters

While sediment pre-filters are essential in RO systems, their use can also face some challenges. Here are some common challenges and their solutions:

1. Quick clogging: If the raw water contains a lot of sediment, the pre-filter can quickly clog. The solution is to use a filter with a larger sediment holding capacity or implement a multilevel filter system.
2. Pressure drop: The pre-filter can quickly clog.
3. Pressure drop: A clogged pre-filter can cause a significant drop in water pressure. Regular pressure monitoring and timely filter replacement can solve this problem.
4. Pressure drop.
5. Leakage: Improper installation or damaged seals can cause leaks. Ensure that the installation is done properly and use high quality seals.
6. Bacterial growth: Improper installation or damaged seals can lead to leakage.
7. Bacterial growth: Filters that are not replaced regularly can harbor bacterial growth. Regular replacement and cleaning of the filter housing can prevent this problem.
8. Bacterial growth.

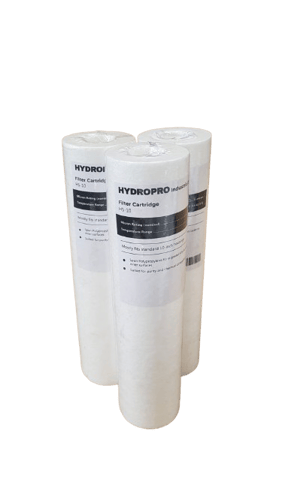

To overcome these challenges, it is important to choose a high-quality sediment pre-filter and perform regular maintenance. Products such as the Hydropro MUI Halal Certified Melt Blown Cartridge can be a good choice as they have been proven effective and safe to use.

Conclusion

The sediment pre-filter is a very important component in household water treatment systems, especially those using Reverse Osmosis (RO) technology. Its role in removing coarse particles and sediment not only protects the sensitive RO membranes, but also improves the overall efficiency and effectiveness of the water treatment system.

In the context of domestic water treatment, a sediment pre-filter is an essential part of any RO system.

In the context of domestic water treatment in Indonesia, where water sources can vary from municipal water to well water with varying degrees of contamination, the use of sediment pre-filters is becoming increasingly crucial. A comprehensive water treatment system, which includes a sediment pre-filter, an activated carbon filter, a water softener (if required), and an RO system, can be an effective solution for producing clean and safe water for consumption.

It is important to remember that the selection, installation, and maintenance of a sediment pre-filter is important to ensure that the water is safe for consumption.

It is important to remember that proper selection, installation, and maintenance of sediment pre-filters and other water treatment system components are critical to ensuring optimal performance and long service life. By understanding the importance of sediment pre-filters and implementing best practices in their use, we can ensure a clean and safe water supply for our families.

Questions and Answers

1. Why is chlorine important in water treatment, and is it safe for consumption?

Chlorine plays an important role in water treatment due to its effectiveness in killing pathogenic microorganisms. Although some people are concerned about the smell and taste of chlorine, its actual presence in drinking water indicates that the water has been properly disinfected. In many countries, including overseas, people are used to drinking water that contains a small amount of chlorine and even consider it a sign of safe water. Chlorine in amounts used for water treatment is safe for consumption and has been proven effective in preventing the spread of waterborne diseases.

2. What is the difference between a whole house system and a point of use system?

Whole house water treatment systems are installed at the point of water entry to the house and treat all water used in the house, whether for bathing, washing, or drinking. These systems usually consist of sediment filters, activated carbon filters, and sometimes water softeners. On the other hand, point-of-use systems, such as under-sink RO units, only treat water at a specific point, usually for drinking and cooking water. Point-of-use systems are generally more sophisticated and can remove more contaminants, but only for smaller volumes of water.

3. How do I determine the right type of water treatment for my home?

To determine the right type of water treatment, you need to consider several factors: 1. Water source: Are you using city water or well water? 2. Water quality: Conduct a water quality test to determine the specific contaminants present. 3. Water demand: How much water do you use daily? 4. Budget: Water treatment systems come in various price levels and running costs. 5. Available space: Some systems require considerable space. After considering these factors, consult a water treatment expert for a recommendation on the system that best suits your needs.

References

1. Byrne, W. "Reverse osmosis: A practical guide for industrial users." (2nd ed.). Tall Oaks Publishing. p. 151.

"Filter maintenance: Filters should be changed regularly, at least every 2 months, to reduce bacteria growth and control differential pressure. Cellulose-based filters should be avoided in RO systems."

2. Byrne, W. "Reverse osmosis: A practical guide for industrial users." (2nd ed.). Tall Oaks Publishing. p. 85.

"Depth filters offer a thick media that can trap a relatively large volume of contaminants, making them effective at solids removal. They are graded in density toward the filter core to trap finer particulates as the water passes through, allowing for greater solids removal prior to replacement."

3. Spellman, F. R. "Handbook of water and wastewater treatment plant operations." (3rd ed.). CRC Press. p. 652.

"The effectiveness of disinfection is measured by testing for the presence or absence of coliform bacteria, which are generally not pathogenic but indicate the possibility of contamination."

4. Binnie, C., & Kimber, M. "Basic Water Treatment." (5th ed.). ICE Publishing. p. 11.

"In much of Europe, there may be complaints about the cost of water, but it is generally accepted that it is essential to have the highest quality water, almost regardless of cost."

5. World Health Organization. (2006). "Guidelines for Drinking-water Quality." (3rd ed.).

"WHO has set guideline standards for carcinogens on the basis of one additional cancer case per 100,000 population receiving water at the guideline value over 70 years."
