Disinfection Methods for Household Water Treatment

Clean water is a basic need that is very important for human life.

Household water treatment systems generally use water sources from PDAMs or wells, which are then collected in storage tanks. Next, the water is pumped through a series of filters and softeners to remove contaminants such as iron, silica, and other minerals. Some households also use reverse osmosis (RO) systems for further filtration. However, a major challenge in household water treatment is the potential for bacterial contamination, especially in well water sources that are prone to leaks from septic tanks. PDAM water that comes from rivers is also not free from the risk of household and industrial waste pollution.

To overcome these challenges, disinfection is a very important step in household water treatment. This process aims to eliminate or inactivate pathogenic microorganisms that can cause disease. Some commonly used disinfection methods include chlorination, ultraviolet (UV), ozonation, and membrane filtration. Each method has its own advantages and disadvantages, so the selection of the right method needs to consider various factors such as raw water quality, water demand, cost, and ease of operation.

In this article, we will discuss the methods used to disinfect water.

In this article, we will take an in-depth look at various disinfection methods for household water treatment. The discussion will cover the working principles, advantages and disadvantages, as well as considerations in the selection and application of each method. With a good understanding of disinfection methods, it is expected that every household can choose and implement the right water treatment system to ensure the availability of safe and quality clean water.

Disinfection Methods for Household Water Treatment

1. Chlorination

Chlorination is the most commonly used disinfection method in water treatment, both large-scale and household. It works by adding chlorine compounds to water to kill pathogenic microorganisms. Chlorine is effective against various types of bacteria, viruses, and protozoa. In addition, chlorine also has a residual effect that can protect water from recontamination during distribution and storage.

The main advantages of chlorination are its high effectiveness, relatively low cost, and ease of application. However, the disadvantages are that it can cause odors and tastes that are not preferred by some people. In addition, chlorination can also produce potentially harmful byproducts if it reacts with organic compounds in the water.

For household use, chlorination can be done by adding sodium hypochlorite (NaClO) or calcium hypochlorite (Ca(ClO)₂) solution to the water storage tank. Proper dosage is essential to ensure effective disinfection without causing unwanted side effects. The use of a Hydropro dosing pump can help set the chlorine dosage accurately and automatically.

2. Ultraviolet (UV)

UV disinfection uses ultraviolet light radiation to inactivate pathogenic microorganisms. UV light damages the DNA of microorganisms so that they cannot reproduce and cause disease. This method is highly effective against many different types of bacteria, viruses and protozoa, including those that are resistant to chlorine such as Cryptosporidium.

UV disinfection is the main advantage of UV disinfection.

The main advantage of UV disinfection is that it does not use chemicals so it does not cause changes in the taste or odor of the water. It is also fast and does not produce harmful by-products. However, the disadvantage is that it has no residual effect so it cannot protect the water from re-contamination after the disinfection process.

For household use, the UV disinfection system can be used to disinfect water.

For domestic use, UV systems are usually installed as point-of-entry (POE) or point-of-use (POU). POE systems are installed at the main water inlet to the house, while POU systems are installed at the point of use such as the kitchen faucet. UV Hydropro systems offer a wide selection of capacities to suit household needs.

3. Ozonization

Ozonization uses ozone gas (O₃) as a disinfecting agent. Ozone is a strong oxidizer that can destroy the cell walls of pathogenic microorganisms. This method is effective against various types of bacteria, viruses, and protozoa, even in very low concentrations.

The advantages of ozonation are that it is highly effective and leaves no chemical residue in the water. In addition, ozone can also help remove unwanted odors, tastes, and colors in water. However, the disadvantages are that the initial investment cost is relatively high and it does not have residual effects like chlorine.

For domestic use, ozonation systems are usually installed on water storage tanks or as part of an integrated water treatment system. Ozone generators produce ozone gas which is then injected into the water using an Aquamatic injector or diffusion system.

4. Membrane Filtration

Membrane filtration uses porous membranes to filter microorganisms and other contaminants from water. Depending on the membrane pore size, this method can be divided into microfiltration, ultrafiltration, nanofiltration, and reverse osmosis (RO). Ultrafiltration and RO are most commonly used for household water disinfection.

The advantage of membrane filtration is its ability to remove different types of contaminants besides microorganisms, such as suspended particles, colloids, and even dissolved ions (for RO). This method also does not use chemicals so it does not cause changes in the taste or odor of the water. However, the drawbacks are the relatively high investment and operational costs, as well as the need for more intensive maintenance.

For domestic use, membrane filtration systems can be installed as POE or POU. The Pentair Merlin undersink RO system is an example of an effective POU solution to produce high-quality drinking water.

5. Combination of Disinfection Methods

In many cases, a combination of several disinfection methods can provide more optimal results. For example, the use of chlorination as a primary disinfectant followed by UV or ozonation as a secondary disinfectant. This combination can utilize the advantages of each method while overcoming its disadvantages.

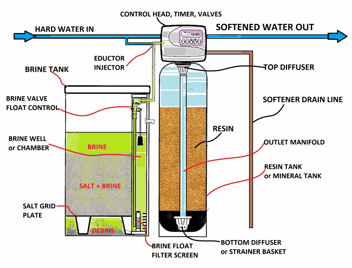

An example of a commonly used combination is a multi-stage filtration system consisting of: 1. Prefiltration using Pentair Pentek filter cartridge 2. Water softening using Purolite ion exchange resin 3. Activated carbon filtration using Calgon activated carbon 4. UV disinfection using Hydropro UV system 5. Post-chlorination for residual effects

A combination system like this can provide all-round protection against different types of contaminants and ensure consistent water quality.

Considerations in Disinfection Method Selection

Choosing the right disinfection method for domestic water treatment needs to consider several factors, including:

1. Raw Water Quality

Raw water characteristics such as turbidity level, iron and manganese content, and the type of microorganisms present will affect the effectiveness of the disinfection method. For example, water with high turbidity may require pretreatment before UV disinfection, or the use of manganese greensand Inversand to remove iron and manganese.

2. Water Requirements

The volume of water required and its usage pattern will influence the selection of system capacity and type of disinfection method. Systems with large capacities may be better suited using chlorination or ozonation, while small systems may use UV or RO.

3. Cost

Cost considerations include initial investment, operational costs, and maintenance costs. Chlorination generally has the lowest cost, while RO has the highest cost. However, it is also necessary to consider the long-term benefits of each method.

4. Ease of Operation

The chosen method should be easy for household users to operate and maintain. Automated systems such as Pentair Autotrol automatic valves can help improve operational ease.

5. User Preferences

Some users may have certain preferences, such as disliking the smell of chlorine or wanting water with low TDS. This needs to be considered in the selection of the disinfection method.

Read more:

Sea Water Treatment Into Drinking Water: Steps and Technology

Sea Water Treatment to Drinking Water.

Implementation of Household Water Treatment System

After choosing the right disinfection method, the implementation of a household water treatment system needs to pay attention to several important aspects:

1. System Design

The system design should consider the layout of the house, the location of the water source, and the points of water use. The use of a Wellmate pressure tank can help maintain stable water pressure throughout the system.

2. Component Selection

Use high-quality components to guarantee system performance and reliability. For example, Pentair FRP filter tanks for filtration systems, or Flint & Walling RO pumps for reverse osmosis systems.

3. Installation

System installation should be performed by an experienced technician to ensure optimal performance and prevent leaks or contamination.

4. Testing and Commissioning

After installation, conduct thorough testing to ensure the system is functioning as designed and producing water that meets the desired quality standards.

5. Routine Maintenance

Create a regular maintenance schedule that includes filter replacement, tank cleaning, and inspection of system components. The use of analyzer pH and conductivity Create can help monitor water quality in real-time.

Conclusion

Disinfection is a crucial stage in domestic water treatment to ensure the availability of safe and quality clean water. Various disinfection methods such as chlorination, UV, ozonation, and membrane filtration have their own advantages and disadvantages. The selection of an appropriate method needs to consider various factors such as raw water quality, water demand, cost, and user preference.

Implementation of an effective household water treatment system requires careful planning, from system design, selection of quality components, correct installation, to regular maintenance. With the right approach, every household can enjoy safe and high-quality clean water, supporting better health and quality of life.

Developments in water treatment technology continue to advance.

Developments in water treatment technology continue, opening up opportunities for more efficient and environmentally friendly solutions in the future. However, the basic principles of disinfection and the importance of maintaining water quality will remain a key foundation in household water treatment.

Questions and Answers

1. Does well water always require disinfection?

Answer: Not always, but it is highly recommended. Well water is susceptible to microbiological contamination, especially if it is close to sources of pollution such as septic tanks. Even if well water looks clear, it could contain invisible pathogenic bacteria. Therefore, disinfection such as chlorination or UV is highly recommended to ensure the safety of well water for consumption.

2. How do I know if the household water disinfection system is working properly?

Answer: Several ways to ensure the disinfection system is working properly: - Conduct regular water quality testing, especially for microbiological parameters. - For chlorination systems, check residual chlorine levels using a simple test kit. - For UV systems, make sure the UV lamp is on and replace it regularly as recommended by the manufacturer. - Look out for any unusual changes in taste, smell or color of the water. - Use water quality monitoring tools such as pH and conductivity analyzers for real-time monitoring.

3. Does the use of reverse osmosis (RO) eliminate the need for other disinfection?

Answer: RO systems are indeed very effective in removing various contaminants including microorganisms. However, for maximum safety, it is recommended to still use additional disinfection methods, especially if RO water is stored in tanks. UV post-treatment or low-dose chlorination can provide additional protection against potential bacterial regrowth in the water distribution or storage system.

References

1. Spellman, F.R. (2009). Handbook of water and wastewater treatment plant operations. CRC Press. p. 652.

2. Hendricks, D.W. (2011). Fundamentals of water treatment unit processes: physical, chemical, and biological. CRC Press. p. 81.

3. Binnie, C., & Kimber, M. (2013). Basic water treatment (5th ed.). ICE Publishing. p. 210.

4. Byrne, W. (2002). Reverse osmosis: A practical guide for industrial users. Tall Oaks Publishing. p. 189.

5. World Health Organization. (2006). Guidelines for drinking-water quality: First addendum to third edition, Volume 1, Recommendations. WHO Press.
