Components and Parts of Household Water Treatment Systems

Clean water is a basic need that is very important for every household.

Introduction

Household water treatment systems have become an increasingly important necessity in this modern era. With the increasing awareness of the importance of good quality water for health, many households are now investing in advanced water treatment systems. These systems not only ensure the availability of clean water for daily needs, but also provide protection against various contaminants that may be present in the water source.

The water source used by homes is the source of the water used by the household.

The source of water used by households generally comes from two main sources: groundwater (wells) or PDAM (Regional Drinking Water Company) water. Each of these sources has different water quality challenges. Groundwater, for example, often contains high levels of iron and manganese, as well as the potential for bacterial contamination due to leaks from septic tanks. On the other hand, PDAM water that comes from rivers is also not immune to the risk of contamination, especially from household and small industry waste.

To address these various water quality issues, household water treatment systems generally consist of several key components. These components work together to remove contaminants, adjust pH, and ensure the resulting water is safe for consumption. In this article, we will explore the various aspects of household water treatment systems, from the key components, the treatment process, to the care and maintenance required.

One of the growing trends in domestic water treatment is the use of whole house or point of entry (POE) systems. This system treats all water entering the house, whether it comes from a well or PDAM, before it is distributed to various points of use. This approach provides comprehensive protection of water quality throughout the home, from drinking water to water for bathing and washing.

In addition, we will also discuss the latest technologies in water treatment, such as reverse osmosis (RO) systems to remove microplastics, the use of ultraviolet (UV) for disinfection, and various filtration media such as activated carbon and ion exchange resins. An understanding of these technologies is important for choosing the system that best suits the needs and water conditions in your home.

Last but not least, we will also discuss the care and maintenance of water treatment systems. This includes regular filter replacement, tank cleaning, as well as regular water quality monitoring. Proper maintenance not only ensures optimal performance of the system, but also extends the lifespan of its components.

By understanding all these aspects of household water treatment systems, it is hoped that readers can make informed decisions in selecting, installing, and maintaining water treatment systems in their homes. Let us begin our journey in diving into this fascinative world of domestic water treatment.

Main Components of Household Water Treatment System

A household water treatment system consists of several key components that work together to produce clean and safe water. Let us discuss in detail these components:

1. Raw Water Storage Tank

A raw water storage tank is the first component in a domestic water treatment system. This tank serves to store water that comes from the source, be it groundwater (well) or PDAM water. The capacity of this tank varies depending on the needs of the household, usually ranging from 500 liters to several thousand liters. Raw water storage tanks should be made of safe and durable materials, such as food grade polyethylene or stainless steel.

2. Water Pump

A water pump plays an important role in conveying water from the storage tank to the treatment system. Proper pump selection is essential to ensure consistent water flow and sufficient pressure. For domestic systems, submersible pumps or jet pumps are commonly used. These pumps should have a capacity that matches the system's needs and be able to generate enough pressure to pass through the various filtration stages.

3. Filtration System

Filtration systems are at the heart of household water treatment. Some commonly used types of filters include:

• Sediment Filter:Functions to remove coarse particles such as sand, mud, and other impurities.
• Active Carbon Filter:Removes odors, tastes, and dissolved organic compounds. It is also effective in removing residual chlorine.
• Active Carbon Filter:Removes odors, tastes, and dissolved organic compounds.
• Manganese Greensand Filter:Specifically used to remove high iron and manganese content in groundwater.
• Resin Filter (Water Softener): Serves to reduce water hardness by exchanging calcium and magnesium ions with sodium ions.

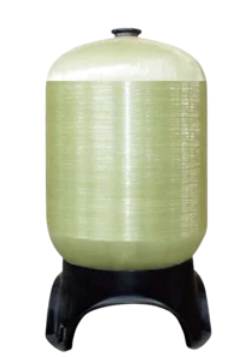

This filtration system usually uses FRP (Fiberglass Reinforced Plastic) tanks that are resistant to pressure and corrosion. Pentair's Polyglass FRP tank is one example of a high-quality product often used in domestic water treatment systems.

4. Reverse Osmosis (RO) System

.

For households that want very high quality drinking water, Reverse Osmosis (RO) systems are often added. RO systems use semi-permeable membranes to remove almost all contaminants, including microplastics, bacteria, and dissolved minerals. The DuPont FilmTec RO membrane is one of the best choices for household RO systems.

5. Disinfection System

Disinfection is an important step to ensure water is free of harmful microorganisms. Some commonly used disinfection methods are:

• Chlorination:Uses a chlorine solution to kill bacteria and other microorganisms.

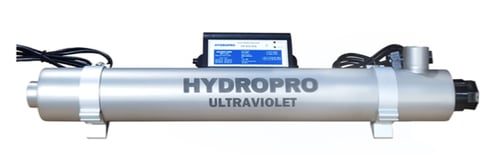

• Ultraviolet (UV):Uses UV light to inactivate microorganisms without adding chemicals. The Hydropro UV system is an example of an effective product for household water disinfection.

6. Clean Water Storage Tank

.

After going through the treatment process, clean water is stored in specialized storage tanks. These tanks are usually placed on the roof or on higher ground to allow gravity distribution of water throughout the house.

7. Distribution System

.

The distribution system consists of a network of pipes that deliver clean water to various points of use in the home. It also includes components such as Wellmate pressure tanks that ensure consistent water pressure throughout the home.

8. Control and Monitoring System

To ensure efficient operation, modern water treatment systems are equipped with automated control systems. These include automatic valves, pressure sensors, and control panels that regulate the operation of various system components. The Pentair Autotrol automatic valve is an example of a control component that is often used in domestic water treatment systems.

Any component in a domestic water treatment system is equipped with an automatic control system.

Each component in a domestic water treatment system plays an important role in producing clean and safe water. Proper component selection and regular maintenance are key to ensuring the system functions optimally and delivers high-quality water for daily needs.

Water Treatment Process and Latest Technology

The household water treatment process involves a series of stages designed to remove different types of contaminants and improve overall water quality. Let us explore this process in more detail and also discuss some of the latest technologies used in household water treatment.

1. Pre-treatment

The pre-treatment stage aims to remove coarse particles and contaminants that can interfere with subsequent treatment processes. This includes:

• Coarse Screening:Uses a sieve or sediment filter to remove large particles such as sand, silt, and dirt.
• Aeration: This process helps remove dissolved gases such as radon and hydrogen sulfide, as well as aiding in the oxidation process of iron and manganese.

For groundwater containing high levels of iron, the use of Birm media from Clack in specialized filters can be very effective for iron removal.

2. Primary Filtration

After pre-treatment, the water passes through a series of filters to remove smaller contaminants:

• Multimedia Filter:Uses different layers of media such as sand, anthracite, and garnet to remove fine particles.
• Active Carbon Filter:Removes odors, tastes, and organic compounds. Calgon's coal-based activated carbon is a popular choice for this filter.
• Filter: Removes odors, tastes, and organic compounds.
• Ion Exchange Filter (Water Softener): Reduces water hardness by exchanging calcium and magnesium ions for sodium ions.

3. Membrane Technology

Membrane technology has become increasingly popular in domestic water treatment due to its effectiveness in removing a wide range of contaminants:

• Ultrafiltration (UF): Removes very small particles, including most bacteria. Asahi's UF membranes are an example of an effective product for household applications.
• Reverse Osmosis (RO): This technology is capable of removing almost all contaminants, including dissolved salts, microplastics, and even viruses. For households that want the highest quality of drinking water, the Pentair Merlin undersink RO system is an excellent choice.

4. Disinfection

The final stage in water treatment is disinfection to ensure the water is free of harmful microorganisms.

• Ultraviolet (UV): An effective method of disinfection without adding chemicals. Modern UV systems such as Hydropro UV are highly efficient in inactivating microorganisms.
• Chlorination: Although less popular for household systems due to potential taste and odor, chlorination is still used in some cases, especially for larger systems.

5. pH Adjustment and Remineralization

After going through the RO process, water often becomes slightly acidic and loses important minerals. To combat this:

• PH adjustment:Using media such as Calcite and Corosex from Clack to raise the pH of the water.
• Remineralization:Adding essential minerals back into the water to improve taste and health benefits.

6. Monitoring and Control Technology

Modern water treatment systems are equipped with advanced technologies for monitoring and control:

• Water Quality Sensors:Monitors parameters such as pH, conductivity, and TDS in real-time.
• Automatic Control System:Uses the Pentair Autotrol automatic valve to regulate water flow and backwash process.
• Mobile App:Some modern systems allow monitoring and control via smartphone.

7. Energy Efficient Technology

Energy efficiency is a major concern in the design of modern water treatment systems:

• Energy Efficient Pumps:The use of pumps such as Flint and Walling RO pumps that are specifically designed for high efficiency.
• Energy Recovery Systems: Especially for RO systems, this technology helps to significantly reduce energy consumption.

With the combination of these technologies, modern domestic water treatment systems are capable of producing high-quality water consistently and efficiently. The selection of the right technology depends on the quality of the source water, the specific needs of the household, and the available budget. It is important to consult a water treatment expert to design a system that best suits your needs.

Care and Maintenance of Household Water Treatment Systems

Proper care and maintenance are key to ensuring a household water treatment system functions optimally and delivers consistently high-quality water. Here are important aspects of system care and maintenance:

1. Periodic Filter Replacement

Filters are the components that most often require replacement:

• Sediment Filters:Generally need to be replaced every 3-6 months, depending on the turbidity level of the source water.
• Active Carbon Filters:Usually replaced every 6-12 months. Pentair Pentek filter cartridges are a good choice for replacement.
• Active Carbon Filters: Typically need to be replaced every 6-12 months.
• RO membrane: Has a longer lifespan, typically 2-3 years, depending on water quality and usage.

2. Tank Cleaning and Sanitization

Water storage tanks need to be cleaned and sanitized periodically to prevent bacterial growth:

• Conduct tank cleaning at least once a year.
• Use a diluted chlorine solution or a specialized sanitizing product to sanitize the tank.
• Rinse the tank thoroughly before reuse.

3. Pump Inspection and Maintenance

The pump is the heart of the water treatment system:

• Check the pump periodically to ensure there are no leaks or abnormal sounds.
• Perform lubrication as per manufacturer's recommendations.
• Replace seals and bearings as necessary to prevent further damage.

4. Calibration of Control and Monitoring Systems

Control and monitoring systems need to be calibrated periodically to ensure accuracy:

• Calibrate pH and conductivity sensors at least every 6 months.
• Check and adjust automatic valve settings such as Pentair Fleck valves to ensure optimal operation.

5. Filtration Media Inspection and Replacement

Filtration media such as sand, anthracite, and ion exchange resins have a limited lifespan:

• Check the effectiveness of the filtration media periodically by measuring the water quality before and after filtration.
• Replace filtration media as recommended by the manufacturer, typically every 3-5 years for media such as Manganese Greensand from Inversand.

6. Inspection and Maintenance of Disinfection Systems

Disinfection systems such as UV require special care:

• Replace the UV lamp every 9-12 months, even if the lamp is still on, as its effectiveness decreases over time.
• Clean the quartz sleeve that protects the UV lamp periodically to ensure optimal UV light penetration.

7. Routine Water Quality Monitoring

Perform regular water quality testing to ensure the system is functioning properly:

• Test basic parameters such as pH, TDS, and water hardness at least once a month.
• Perform microbiological testing every 3-6 months to ensure there is no bacterial contamination.
• Consider using Create's analyzer of pH and conductivity for more accurate and consistent monitoring.

8. Common Troubleshooting

Some common issues that may arise and how to resolve them:

• Water Pressure Drop: Usually caused by a clogged filter. Replace the filter or do a backwash if possible.
• Unpleasant Taste or Odor: May be caused by a saturated carbon filter. Replace the carbon filter or check the disinfection system.
• Taste or Odor.
• Cloudy Water:Could be caused by a problem with the sediment or multimedia filter. Check and replace the filter if necessary.

• May be caused by a problem with the sediment or multimedia filter.

9. Documentation and Recordkeeping

It is important to keep good records of system care and maintenance:

• Record dates of filter changes, tank cleanings, and other maintenance.
• Keep water quality test results to monitor long-term trends.
• Document any repairs or modifications made to the system.

By performing regular care and maintenance, you can ensure your household water treatment system is functioning optimally, extending the life of the components, and most importantly, guaranteeing consistent water quality for your family. Do not hesitate to consult a professional if you encounter issues that you cannot resolve on your own or if you need assistance in the regular maintenance of your system.

Conclusion

Household water treatment systems have become an essential component in ensuring the availability of clean and safe water in modern homes. Through an in-depth discussion of the components, processes, technologies, as well as the care and maintenance of these systems, we have gained a comprehensive understanding of how complex and important these systems are.

Some key points to keep in mind.

Some key points to keep in mind:

1. Household water treatment systems consist of various components working together, ranging from storage tanks, pumps, filtration systems, to disinfection technologies.
2. Up-to-date technologies such as reverse osmosis and ultrafiltration allow for more effective water treatment, removing even the most minute contaminants such as microplastics and viruses.
3. Routine care and maintenance is essential to ensure optimal performance of the system. This includes periodic filter replacement, tank cleaning, and water quality monitoring.
4. Regular maintenance and upkeep are essential to ensure optimal performance of the system.
5. Choosing the right components, such as Pentair's Polyglass FRP tank or DuPont FilmTec RO membrane, can significantly improve the efficiency and effectiveness of the system.
6. Modern control and monitoring systems enable better management and quick response to changes in water quality.

Investing in a quality household water treatment system and its proper maintenance is not just about meeting daily water needs, but also about protecting the health of the family in the long run. By understanding every aspect of these systems, homeowners can make informed decisions in the selection, installation, and maintenance of their water treatment systems.

It is important to remember that although water treatment technology is constantly evolving, there is no "one-size-fits-all" system. Each household has unique needs and challenges regarding water quality. Therefore, consultation with a water treatment expert and a thorough analysis of the source water quality is highly recommended before selecting or modifying a water treatment system.

Consultation with a water treatment expert and a thorough analysis of the source water quality is highly recommended before selecting or modifying a water treatment system.

Finally, with the knowledge we have discussed, it is hoped that readers can better appreciate the complexity and importance of household water treatment systems. These systems are not just pieces of equipment, but an investment in the health and well-being of the family. With proper maintenance and a good understanding, household water treatment systems can be a reliable source of clean and safe water for years to come.

Questions and Answers About Household Water Treatment Systems

1. Do reverse osmosis (RO) systems remove essential minerals from water?

Yes, RO systems do remove most minerals from water, including beneficial minerals. However, this is not a big deal as most of our mineral intake comes from food, not water. If you are concerned, you can add a remineralization stage after RO or use a post-RO filter that adds certain minerals back into the water.

2. How often should I change the filter in a household water treatment system?

The frequency of filter replacement depends on the type of filter and the quality of your source water. In general: - Sediment filters: every 3-6 months - Activated carbon filters: every 6-12 months - RO membranes: every 2-3 years However, it is important to monitor your water quality and system performance. If you notice a decrease in water quality or reduced water flow, it may be time to replace the filter early.

3. Are household water treatment systems effective in removing microplastics?

Yes, modern household water treatment systems, especially those using reverse osmosis (RO) or ultrafiltration (UF) technology, are very effective in removing microplastics. RO and UF membranes have very small pores that can retain microplastic particles. However, it is important to ensure that your system is well maintained and the filters are changed regularly to maintain their effectiveness in removing contaminants including microplastics.
